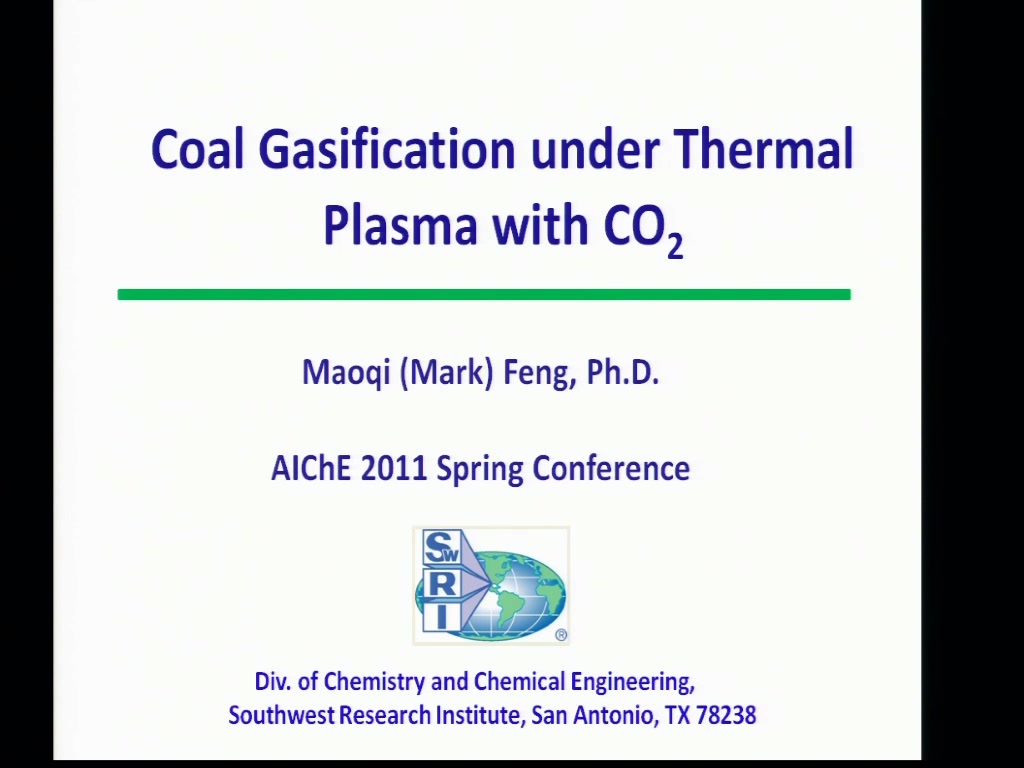

Thermal Plasma Gasification of Different Coals with Carbon Dioxide

  • Type:
    Conference Presentation
  • Conference Type:
    AIChE Spring Meeting and Global Congress on Process Safety
  • Presentation Date:
    March 14, 2011
  • Skill Level:
  • PDHs:

Share This Post:

Once the content has been viewed and you have attested to it, you will be able to download and print a certificate for PDH credits. If you have already viewed this content, please click here to login.

Carbon dioxide emissions from conventional coal-fired power plants constitute the majority CO2 emissions in the U.S. Mitigation of CO2 by chemical conversion provides an alternative method to reduce the CO2 emissions from coal gasification process with the benefit of eliminating energy-intensive CO2 sequestration step. A CO2 emission reduction process, which utilizes CO2 as oxygen source by reacting CO2 with coal to produce CO via the reverse Boudouard reaction (CO2 (g) + C (s) → 2CO, DHo = +172.6 kJ/mol, DGo = +119.9 kJ/mol) in a thermal plasma reactor, is reported in this paper. Since the reaction has a positive DGo, high temperature from thermal plasma shifts the equilibrium favorably to the right. A thermal plasma spray system was adapted for this application. The reaction temperature can be changed by adjusting the thermal plasma amperage. Three different coals were tested with CO2 under thermal plasma condition (650 A, 28 V), and the CO2 conversion rate was lignite coal 73%, subbituminous coal 77%, and bituminous coal 88%, respectively. Temperature effect study shows that the CO2 conversions increased with the temperatures, which is in accordance with the fact that the reaction of CO2 with carbon is an endothermic reaction.
