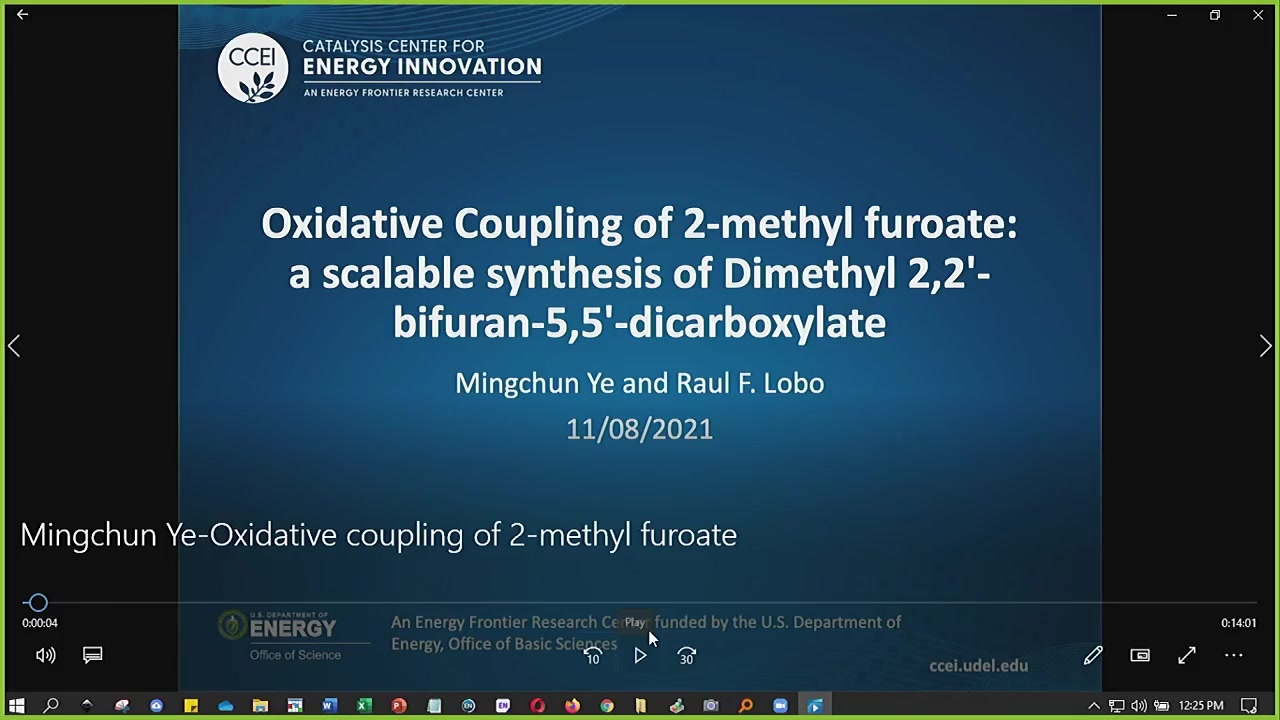

A Scalable Synthesis of Dimethyl 2,2'-Bifuran-5,5'-Dicarboxylate Via the Oxidative Coupling of 2-Methyl Furoate

  • Checkout

    Checkout

    Do you already own this?

    Pricing


    Individuals

    AIChE Member Credits 0.5
    AIChE Members $19.00
    AIChE Graduate Student Members Free
    AIChE Undergraduate Student Members Free
    Non-Members $29.00
  • Type:
    Conference Presentation
  • Conference Type:
    AIChE Annual Meeting
  • Presentation Date:
    November 8, 2021
  • Duration:
    18 minutes
  • Skill Level:
    Intermediate
  • PDHs:
    0.50

Share This Post:

To mitigate the environmental impact of plastic waste and reduce our dependence on fossil fuels, we must find renewable alternatives with desirable combinations of physical and chemical properties. Recent investigations have shown that bifuran-based polyesters could afford such materials: poly(ethylene bifuroate), for example, has shown attractive UV blocking and gas barrier properties. The bifuroate can be prepared by the selective C-C homocoupling of methyl furoate via Heck-type reaction, but this requires halide substitution and inert reaction atmosphere. To prepare bifuroate from less expensive ingredients, alternatives to the selective C-C homocoupling need to be found. A recent report has shown the feasibility of oxidative coupling of furoate using homogeneous Pd(II) catalysts. This reaction mixture, however, has many components and the yields are low for practical purposes.

After optimization of reaction conditions, we found the reaction of methyl furoate, palladium acetate and sodium pivalate—as catalyst promoter—in dimethylacetamide (DMAc) at moderate temperatures (140 °C) generates acceptable yields of the product (11.4%) in only 3.5 min. The selectivity to the 5,5’ isomer is very high, with turnover frequency (TOF) in excess of 500 h-1. The reaction kinetics were investigated, and a possible mechanism and rate determine step (RDS) are proposed. The amount of catalyst, concentration of reactant, and temperature have all significant impact on the rate and yield, while oxygen pressure shows little influence. We conclude that the reductive elimination step is not the RDS. Trans-metalation of two Pd-activated furoates appears to be the most likely RDS because of the observation of the reaction order of 2.5 on Pd. It is also found that the solubility of product is strongly temperature-dependent, a property that can be used as the basis for a scalable continuous separation method. Recycle tests show that no major deactivation occurs during at least 4 reaction cycles.

Presenter(s):
Once the content has been viewed and you have attested to it, you will be able to download and print a certificate for PDH credits. If you have already viewed this content, please click here to login.
