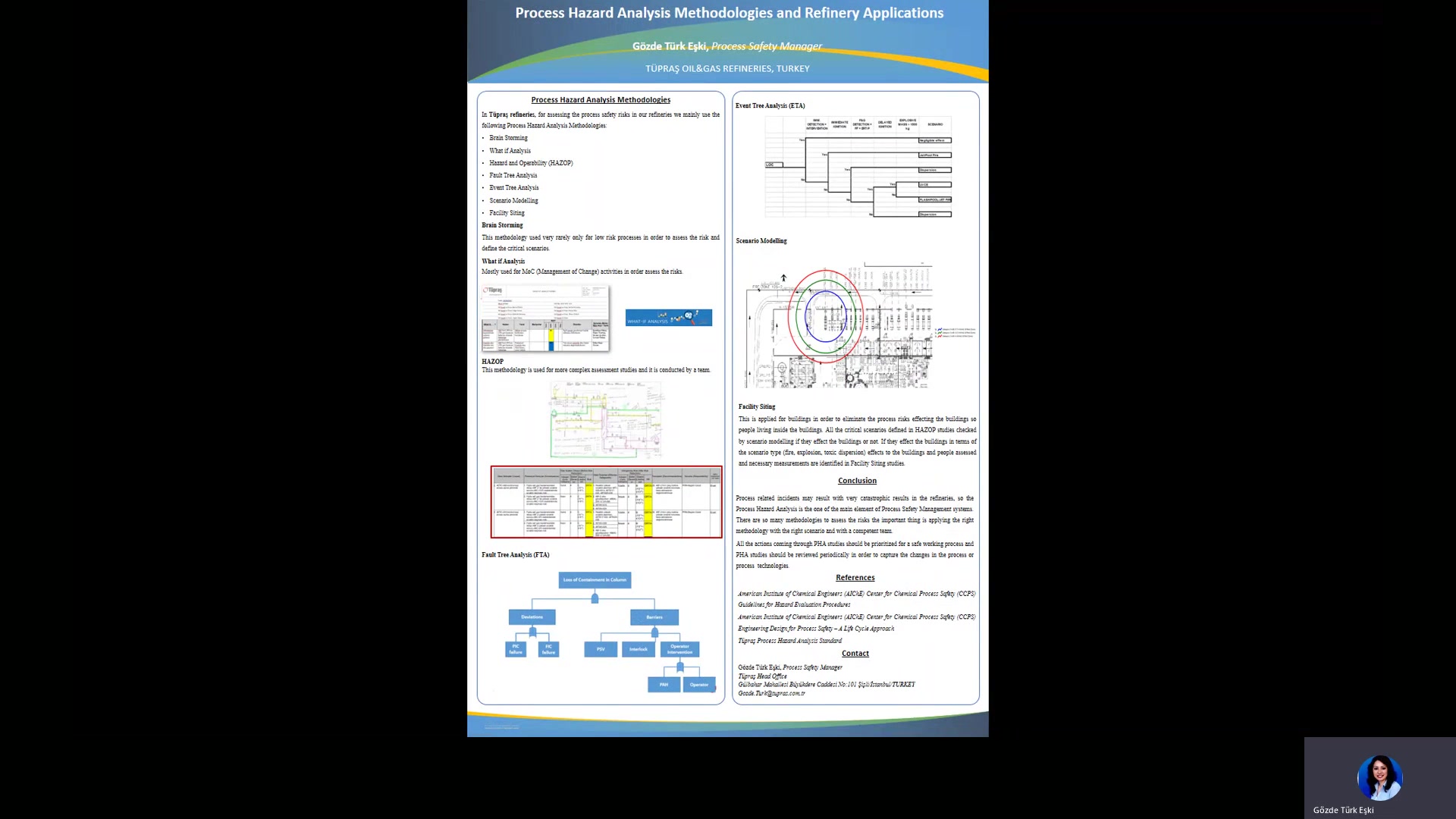

Process Hazard Analysis Methodologies and Refinery Applications

Source: AIChE
  • Checkout

    Checkout

    Do you already own this?

    Pricing


    Individuals

    AIChE Member Credits 0.5
    AIChE Members $19.00
    AIChE Graduate Student Members Free
    AIChE Undergraduate Student Members Free
    Non-Members $29.00
  • Type:
    Conference Presentation
  • Conference Type:
    AIChE Spring Meeting and Global Congress on Process Safety
  • Presentation Date:
    April 21, 2021
  • Duration:
    60 minutes
  • Skill Level:
    Intermediate
  • PDHs:
    0.50

Share This Post:

Process Safety Management System starts with managing the process related risks and from the first step of establishing a new process unit that is needed to evaluate the risks and define the necessary measurements. Process Hazard Analysis methodologies are the systematic tools which help to evaluate the risks in a process. For different needs there are several methodologies like DOW FETI, HAZOP, What if, HAZID, Fault Tree and Event Tree Analysis, Scenario Modelling, Facility Siting etc. Some of these methodologies are semi quantitative some are quantitative methodologies. In order to define and prevent major industrial accidents in our refinery we use DOW FETI, HAZOP, FTA and ETA and Scenario modelling. Moreover for some kind of projects we may also apply What if and HAZID analysis instead of HAZOP depending on the complexity. Facility Siting is another tool for risk related studies which is used to evaluate the risks for buildings in order to protect people inside the buildings.

The workflow for a full unit PHA study starts with DOW FETI calculation which is used for risk ranking of al static equipment inside the unit. DOW FETI calculation is done in accordance with the equipment temperature, pressure, hold-up amounts, components and also reaction types if there is any. Then risk assessment process continues with HAZOP studies which is for scenario identification. In HAZOP, first step is chopping the unit into small parts to be evaluated which is called nodes. After that all nodes are evaluated using P&IDs and PFDs by keywords like temperature, pressure, flow, level etc. HAZOP helps to understand what kind of scenarios are possible inside the unit and these critical scenarios are taken through FTA and ETA studies. HAZOP is a semi quantitative risk assessment method where FTA and ETA are quantitative methods. FTA is applied for critical scenarios in order to find out the probability of top event then ETA is then applied in order to find out the probability of scenarios like fire, explosion, toxic dispersion etc. caused by this top event. FTA and ETA analysis all use the statistical PFD and failure rate values of all initiating events and barriers defined in HAZOP for the related scenario.

Scenario Modelling is the following step which is used for understanding the effect of the probable scenario. The most probable scenarios coming from ETA is modelled to see the effect zones. These effect zones are used to plan Emergency Response Studies for all these potential major accidents.

Facility Siting is another check point in a unit PHA study all potential scenario modelling results are used to evaluate the risks for the buildings and also if there are any in the effect zones of fire, explosion or toxic release then there should be actions defined.
