Materials and Chemicals
Flame Retardant Improves Visibility and Safety with Vibrant Coloring
The Amodel polyphthalamide (PPA) HFFR-4133 orange (OR) is a high-performance flame retardant designed to improve the safety and visibility of electric vehicle components, including connectors and busbars. The vibrant orange color provides immediate identification of high-voltage components while remaining stable even after prolonged heat exposure. The PPA HFFR-4133 OR is hot-water moldable and complies with industry standards, including International Organization for Standardization (ISO) 6469-3, International Electrotechnical Commission (IEC) 60664, and Underwriters Laboratories (UL) Solutions V0 rating. It can be easily installed as it comes with a pre-colored resin that eliminates the need for in-press coloring.
Syensqo

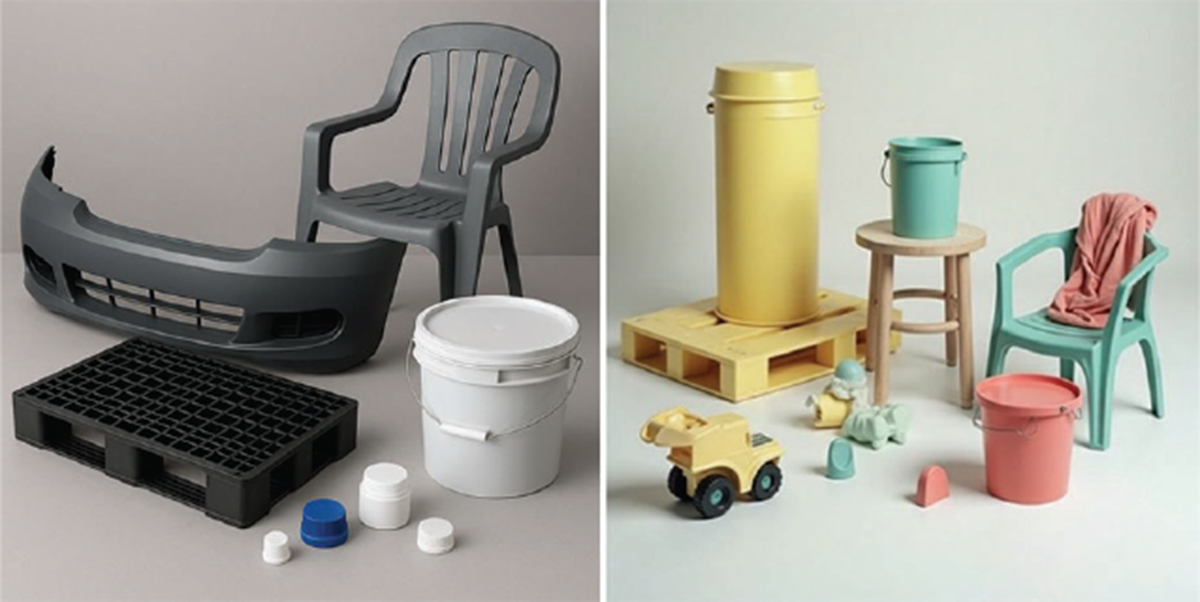

Dual-Function Additive Enhances Polypropylene Material Properties
Setogem RD is a dual-function nucleator and acid scavenger molecule for polypropylenes (PPs). The nucleation component of the additive helps control crystal formation, resulting in PP materials with ideal properties such as high stiffness, impact strength, and isotropic shrinkage. It also ensures low creep deformation and a high heat deflection temperature. Meanwhile, the acid scavenging reduces migration and blooming, as well as provides corrosion protection. The product is zinc-free and features low Scope 1 and 2 emissions, promoting sustainability. Setogem RD meets global industry standards and is safe for medical and food-contact applications.
Kisuma Chemicals

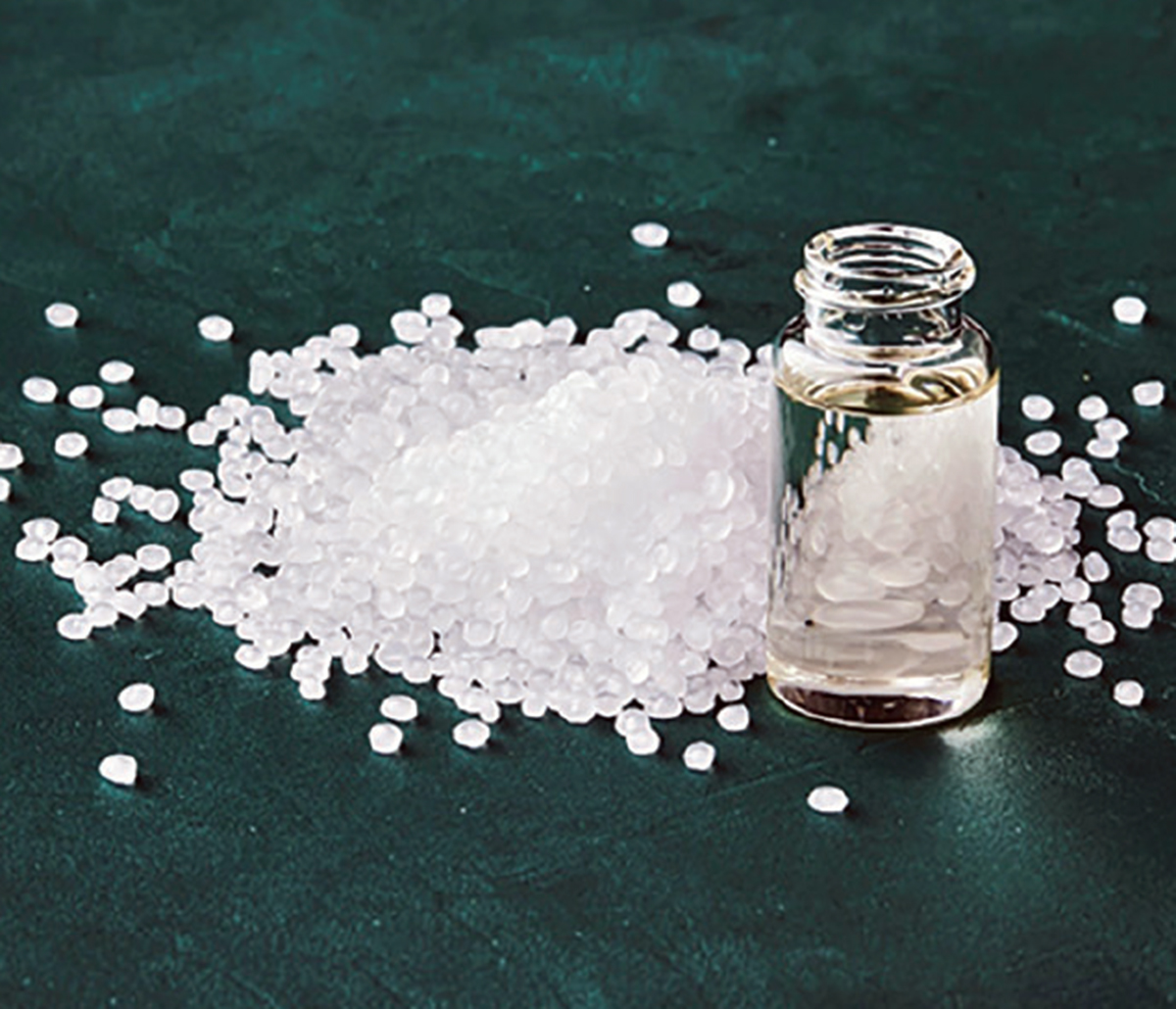

Anti-Fouling Additive Boasts Nontoxic and Sustainable Formula
Einar 987 is an anti-fouling additive for the polypropylene (PP) and polyethylene (PE) polymerization processes. The compound is a safer, more sustainable alternative to the current ethoxylated amine (EA) solutions. Its active ingredient is a polyglycerol ester (PGE) fatty acid blend sourced from vegetable oils, which is nontoxic and approved for food-contact applications. Effective at dosages as low as 100–300 ppm during polymerization, the additive’s anti-static properties help stabilize the reaction temperature and maintain consistent product quality. Its high performance and plant-based formula make the additive a desirable replacement for currently available options.
Palsgaard A/S

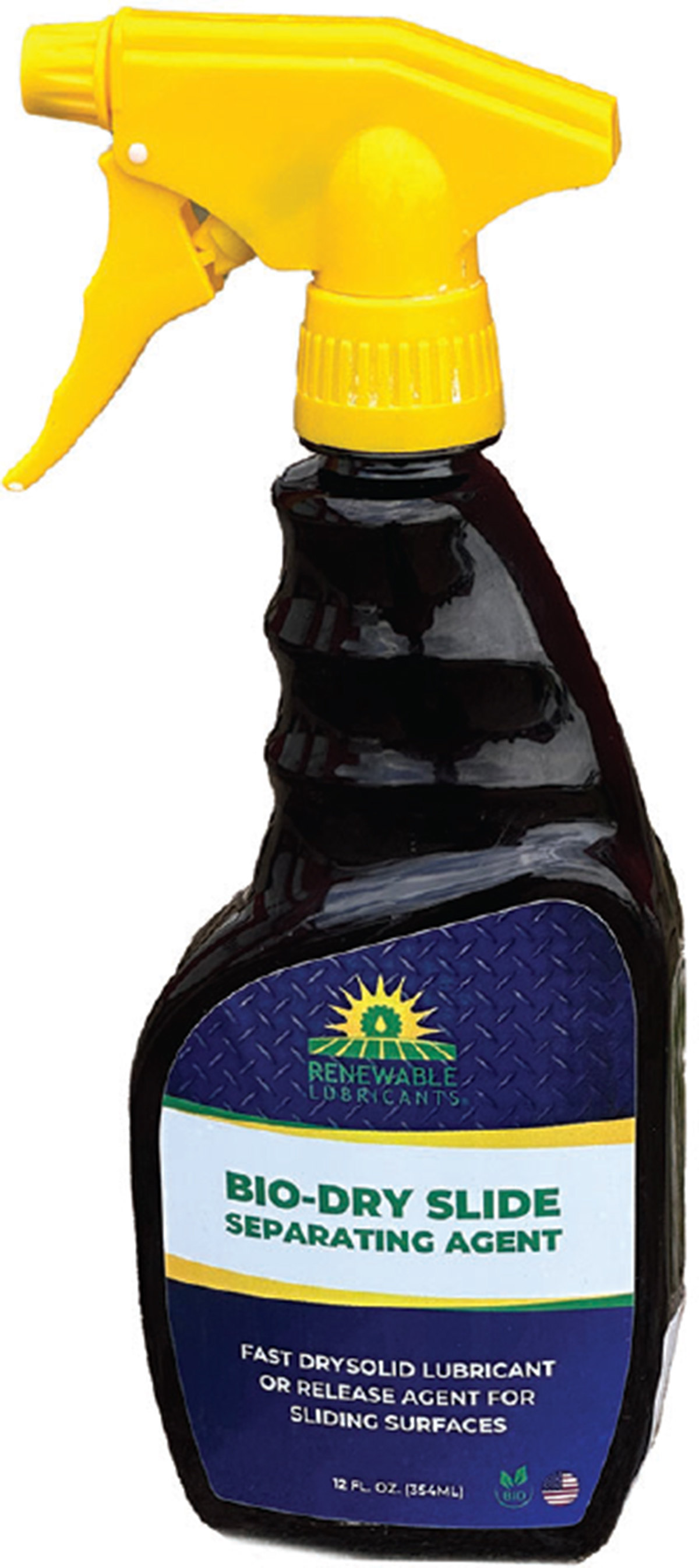

Food-Grade Lubricant Can Withstand High Temperatures
Bio-Dry Slide is a food-grade, biobased, extreme pressure (EP) lubricant specifically designed for surfaces that require quick-dry solutions. Strengthened with food-grade white graphite, it can lubricate sliding surfaces at temperatures over 1,000°C — over double that of other common carriers. In addition to its anti-rust, anti-oxidation, and anti-wear protection properties, Bio-Dry Slide provides a coefficient of friction of 0.08. The formulation is biodegradable and does not contain any heavy metals, per- and polyfluoroalkyl substances (PFAs), or other toxic compounds, prioritizing sustainability and worker safety.
Renewable Lubricants, Inc.
Laboratory Equipment
Thin-Film Evaporator System Allows for Plug-and-Play Installation
The ROTOTHERM MINI system is a scalable, continuous lab-scale thin-film evaporator and dryer for research and development (R&D) and pilot plant applications. This unit features plug-and-play installation capabilities and includes an evaporator, feed pump, vacuum pump, condenser, hot oil temperature control unit (TCU), and integrated cart with piping and instrumentation. Updates to the system include a bigger bottoms outlet, a bigger vapor outlet, an added sight glass, and an improved rotor design for creating dry powders. An explosion-proof version is also available.
Artisan Industries

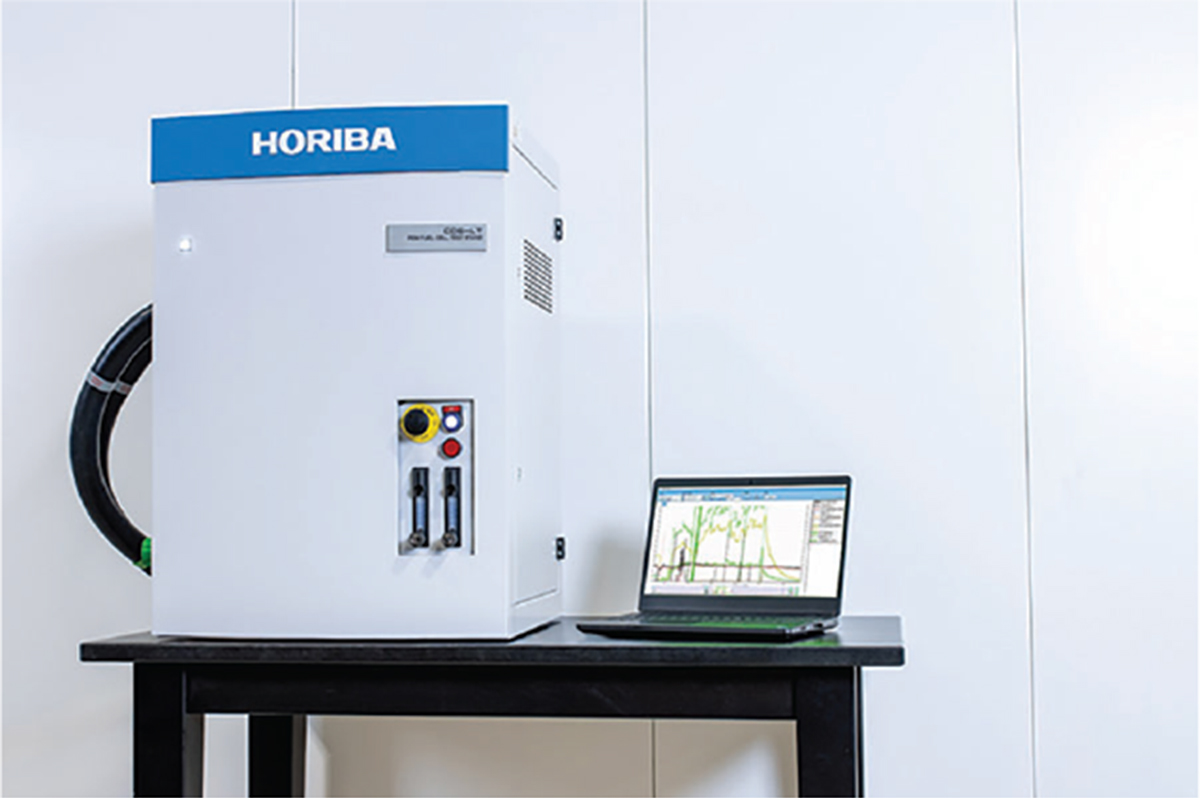

Benchtop Fuel Cell Test Station Delivers Accuracy and Repeatability
The C05-LT proton exchange membrane (PEM) benchtop fuel cell test station is an advanced testing instrument for laboratory settings. It offers precise temperature, pressure, and flow control for optimal analysis, and can reliably test single-cell fuel cells and stacks up to 100 W. This device applies an electrical load to induce the necessary chemical reaction for PEM fuel cell testing by heating and humidifying gases at a set flowrate. Both the load and flowrate parameters are determined by the user. To further maximize user-friendliness, the system uses a code-free plug-and-play software for easy installation.
HORIBA, Ltd.
Instrumentation
Vacuum Gauges Are Designed for Harsh Conditions
The CenterLine CNR series of analog capacitive vacuum gauges is designed for the harsh operating conditions in the semiconductor industry and includes five models: 36x, 37x, 38x, 39x, and 30x. This series includes heated and unheated variants, can withstand an operating range of 0.1 Torr to 1,000 Torr, and has a life-span of up to 40 years. The gauges’ robust diaphragm sensors are protected by a ceramic shield coated through atomic layer deposition (ALD), making the devices resistant to contamination and corrosion.
Pfeiffer Vacuum
Beverage Composition Analyzers Boost Quality Control
The Cobrix 5501, 5601, 7501, and 7601 are four in-line analyzers for quality control in the beverage industry. These analyzers allow for the real-time monitoring of critical parameters, including °Brix, % diet, CO2 levels, and total acidity. The 5601 and 7601 models are entirely maintenance-free and require no service. Additionally, the enhanced design of the 7501 and 7601 models generates 10 times faster response times, improves accuracy and stability, and reduces calibration needs. Measurement Check technology in these models verifies parameter readings and helps prevent discrepancies like sugar carry-over, missing ingredients, or sensor malfunctions.
Anton Paar
Ammonia Analyzer Extends Continuous Operation Times
The NH6000sc ammonia analyzer simplifies operations and improves efficiency by delivering six months of constant operation, requiring only two maintenance touchpoints per year. This device features automatic calibration, validation, and cleaning, along with predictive diagnostics, to help minimize downtime. Additionally, this analyzer’s compressor lasts 50% longer than comparable models. Integrated FX610 and FX620 filtration systems are lighter than previous models and provide enhanced air-cleaning and flow-detection capabilities. This unit was designed for municipal and industrial water quality monitoring applications.
Hach
Environmental, Health, and Safety

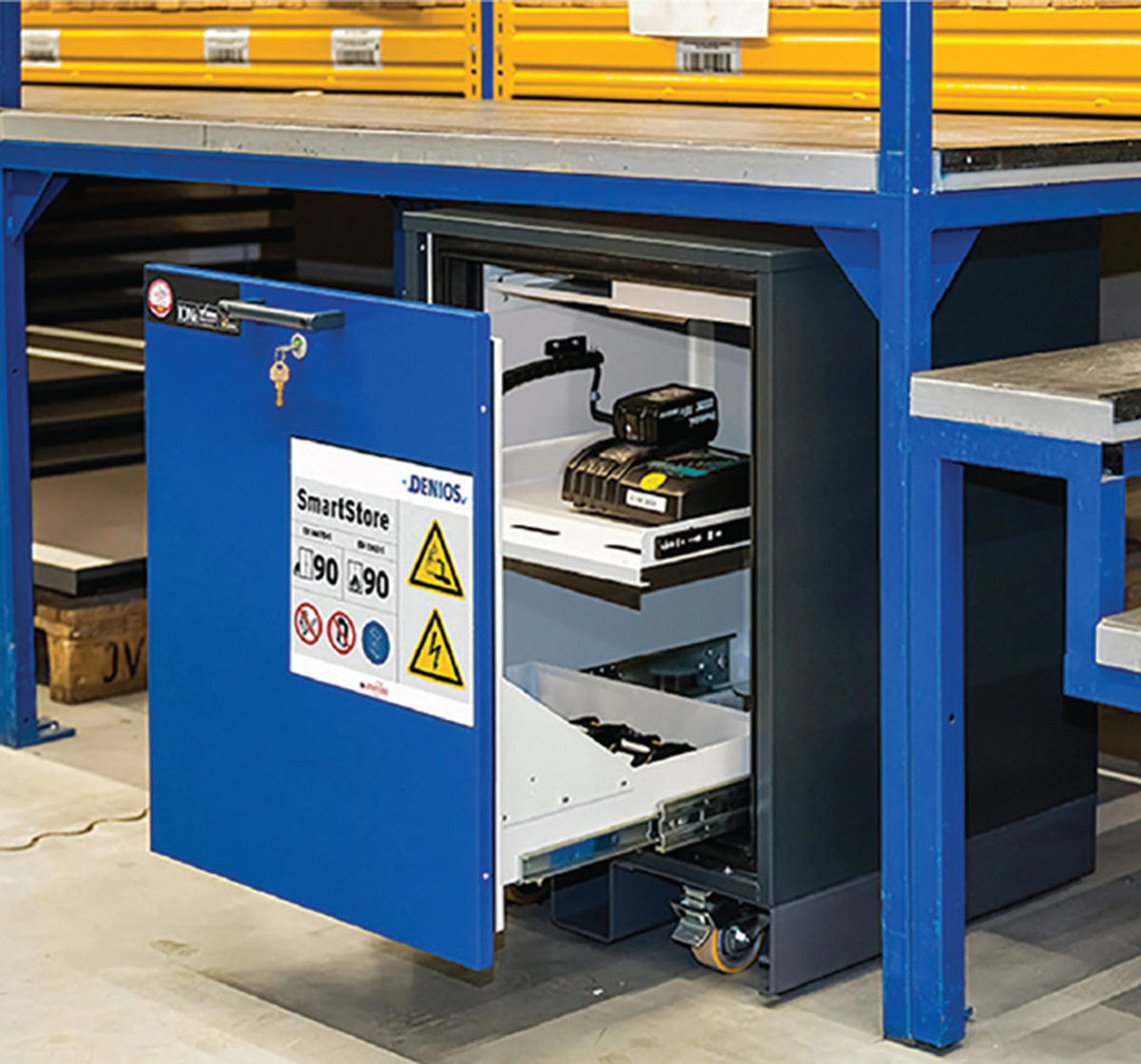

Under-Bench Cabinets Can Safely Store Lithium-Ion Batteries
These under-bench cabinets are designed to safely store undamaged lithium-ion batteries. The cabinets include key safety features, such as 90 min of fire protection (both from the outside and the inside, compatible with industry standards), a pressure relief valve that opens to release excess internal pressure, and a liquid-tight spill sump made of powder-coated sheet steel to contain leaks or burning batteries. The robust doors are permanently self-closing and include an oil-damper door closer for secure operation, enhancing system safety. A profile cylinder is also compatible with the closing system and includes a red and green lock indicator. The cabinets are most applicable to laboratories, clinics, medical facilities, and maintenance rooms.
DENIOS Inc.
Wearable Armband Protects Workers from Heat Injuries
The eq LifeBand is a wearable armband that protects industrial workers from heat strain and stress. The affordable, lightweight device tracks the user’s core body temperature in real time. During wear, the band sends hydration reminders to the worker, encouraging fluid intake throughout the duration of their exposure time. It also uses an integrated wet bulb globe temperature (WBGT) to generate tailored work-rest plans for teams working in high-risk conditions. The band seamlessly integrates with the Black Ghost V2 software, ensuring accurate data analysis and reporting, and is fully compliant with industry heat stress guidelines.
Equivital
Software
Predictive Intelligence Optimizes Compressor Availability
The predictive intelligence module for integration with the PROGNOST-NT diagnostic system is a user-friendly software that helps optimize compressor usage. Its artificial intelligence (AI)-based algorithms combine real-time plant data with known product information to deliver reports that instruct users on the best time for maintenance without risking unexpected downtime, ultimately decreasing operating costs. These reports predict factors such as the projected availability span and remaining useful lifetime for various key compressor components. Featuring a user-friendly design, the module uploads the reports to the secure Azure cloud, where it is readily available for operators to access when making plant decisions.
Burckhardt Compression

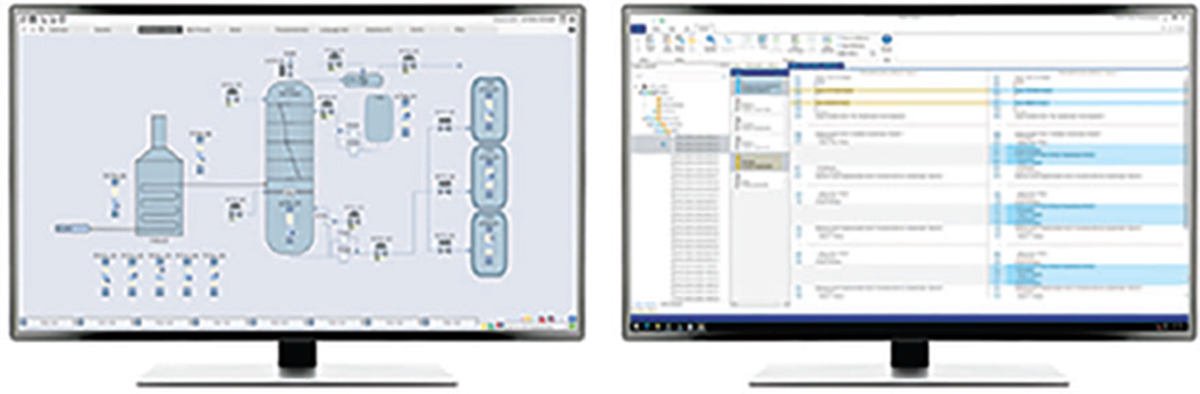

Control System Features Improved Device Compatibility
The DeltaV automation platform has been expanded to include the Feature Pack 3 update for its distributed control system (DCS). Its new capabilities include process field network (PROFINET) S2 device compatibility, improved operator training functions, and change management support for human-machine interfaces (HMIs). This allows users to better track system changes and produce validation reports, both for internal and regulatory authorities. The feature pack also provides access to infrastructure for the IQ controller, which is a modular, software-defined controller for process control applications. It also improves Ethernet-based field device network availability through its PROFINET system redundancy.
Emerson
Engineering Services
Educational Rewards Program Teaches Humidification Best Practices
Understanding humidification best practices is crucial across many fields, including the food and beverage, heating, ventilation, and air conditioning (HVAC), and pharmaceutical industries. This rewards program provides expert-sourced educational content focused on humidity control, evaporative cooling, and dehumidification techniques. The program is fit for engineers and contractors of all experience levels, and includes videos, quizzes, and surveys. For each activity a participant completes, they earn points, which they can then redeem for products from Apple, Bose, and Ninja, among others, in addition to movie tickets and sporting equipment.
DriSteem
Heat Transfer
Heat Exchanger Improves Yield in Poultry Processing
The KwikChiller is a nitrogen-powered heat exchanger designed to quickly and continuously chill poultry. This unit has a small footprint and provides rapid and uniform temperature control, improving upon the existing practice of direct cooling using CO2 pellets. Additionally, improved temperature control increases yield at high-production capacities. This unit reduces purge loss by 85% compared to existing practices and eliminates CO2 safety hazards.
Messer North America, Inc.
