Product Focus: Heat Transfer
Heat Exchanger Delivers Hot Water On Demand
The EasiHeat domestic hot water (DHW) system incorporates Spirax Intelligent Monitoring System (S.I.M.S) technology to deliver a constant supply of hot water at a stable temperature to manufacturing processes, even when the load demand changes suddenly and drastically. On-demand supply of hot water eliminates the need to store large volumes and keep them hot. Precise sizing of all of the components ensures accurate temperature control and responsiveness under all load conditions. The control system — based on S.I.M.S technology — enables monitoring, diagnostics, and status communications. Visual access to data that detail how and where energy is consumed informs energy management programs and supports efficiency.
Spirax Sarco, Inc.
Chillers Achieve Ultralow Temperatures
These portable two-stage, cascade refrigeration chillers are capable of cooling to temperatures as low as –80°C. The W-80 water-cooled and A-80 air-cooled models are designed for reliable operation during 24/7 temperature control. On-board diagnostics help predict chiller health and avoid unexpected downtime. An intuitive touch-screen interface allows users to set up thermal profiles, view data and trends, and log diagnostics. Both the W-80 and A-80 come in three different models to support a range of cooling capacities and various applications.
Portable Air Chiller Cools Hazardous Locations
Class 1 Division 1 work areas that do not have access to traditional air conditioning will benefit from the EPF-AC-30 hazardous location cooler, which combines a fan and dry-mist technology. The portable cooling unit has a 34-gal water tank and two separate water filters, and can provide cooling for up to 8 hr without the need to run hose connections. The system automatically shuts off when the water reservoir is empty, eliminating the potential for pump damage. Dry-mist technology ensures that the environment being cooled stays dry while the ambient temperature is lowered.
Heating Control Systems Have Increased Output Power and Power Density
The Siplus modular heating control systems (HCS) for switching and controlling heat emitter arrays and elements now have considerably higher output power and power density. The HCS4200 for 230/277-V systems has twice the number of outputs as previously, up to 384 total, enabling it to control very large heat emitter arrays in small spaces. Additionally, the output power has been more than doubled, from 1.47 kW to 3.68 kW per 230-V heating element. The HCS4300 for 400/480-V systems has a maximum output of 7.6 kW and up to 216 outputs, allowing it to control four times as many heating elements as previously.
Coolant Transforms and Chills — Just Add Water
Frosty Tech coolant provides perpetual chilling without a power source. Adding water of any quality, including seawater, transforms the powdered cooling agent into a sub-freezing product. It becomes colder than ice in 10–30 seconds, and can maintain this temperature for several hours, even in ambient temperatures up to 95°F (35°C). The coolant powder can be regenerated and reused hundreds of times by allowing the water to evaporate; the regenerated powder retains 100% of its original cooling ability. The product can be adapted to any custom shape or volume, and to flexible or rigid packaging, and can be formulated to achieve almost any freezing point or temperature desired. It is recyclable and does not contain any toxic chemicals.
Frosty Cold Technologies
Enclosure Coolers Keep Equipment Running
Excessive heat or contamination can cause digital displays to misread, controls to drift, and breakers to trip below rated loads, which can cause machine or line shutdowns. These hazardous location enclosure coolers keep electrical and electronic enclosures cool and clean, even in the dirtiest, hottest environments, to prevent loss of productivity. The HazLoc Vortex A/C coolers are designed specifically for purged electrical enclosures in Class I Division 2, Class II Division 2, Groups F&G, and Class III locations. The ATEX Vortex A/C coolers are designed for purged electrical enclosures in ATEX Zones 2 and 22 and Temperature Class T4 areas. The coolers are a low-cost alternative to expensive, high-maintenance air conditioners.
Materials and Chemicals
Elastomers Let Light Through
LUMISIL 590 and LUMISIL 591 are transparent, addition-curing silicone elastomers. With a high refractive index of 1.53, these grades are suitable for manufacturing light-emitting diodes (LEDs). The silicone protects the sensitive LED chip from mechanical influences and corrosive gases, while the material’s high refractive index enables optimum light efficiency. The transparent silicone allows almost all light in the visible spectral range (approximately 400–700 nm) to pass through, and it will not yellow even when subjected to intense radiation. LUMISIL 590 is relatively soft, whereas LUMISIL 591 is formulated to be significantly harder.
ETFE Adhesive Bonds in One Processing Step
The LM-ETFE AH Series of adhesive fluoropolymers has been expanded to include Fluon ethylene tetrafluoroethylene (ETFE) LH-8000. The new offering exhibits advanced adhesive properties that allow it to bond to dissimilar materials, such a polyamides, polyethylenes, and metals. Its adhesives functionality makes it suitable for producing multilayer structures in a one-step process without surface treatment and often without the need for a tie layer. LH-8000 is a cost-effective option for applications such as chemical bags, hot water hoses, rubber hose mandrels, antistick conveyor belts, multilayer monofilament, and tubes that store and dispense harsh materials. It has an ultralow melting point of 180–190°C and an onset of degradation temperature of 350°C.
AGC Chemicals America, Inc.
Chloride Guard Prevents Downstream Catalyst Poisoning
Chloride is a typical catalyst poison that degrades catalyst activity and mechanical stability in ammonia or hydrogen plants. ShiftGuard 200 is a low-temperature shift (LTS) chloride guard that effectively adsorbs and retains chlorides to protect the performance of the main downstream LTS catalyst. To help users achieve sustainability targets, it is formulated to be chromium free. It increases process reliability and production efficiency, which enables energy savings, higher production rates, and overall cost savings.
Environmental, Health, and Safety
Particulate Meter Monitors Air Quality
Particulate pollution is linked to numerous health problems, including coughing, wheezing, reduced lung function, asthma attacks, heart attacks, and stroke. The HHTP21 handheld particulate, humidity, and temperature meter measures fine (smaller than 2.5 µm) and coarse (2.5–10 µm) particles to help maintain air quality. The large display screen, 8-hr battery life, and time-stamp function make operation easy. The device is suitable for monitoring particulate pollution from various sources, including petro-chemical facilities, thermal power plants, and metal refineries.
Omega Engineering, Inc.
Rupture-Disc Monitoring Unit Is Reusable
The NIMU (non-invasive monitoring unit) is a rupture-disc monitor that provides reliable information about the way a bursting disc responds to positive and negative pressure. The unit is installed so that it is isolated from the process medium, making it suitable for critical processes and applications that require the entire system to be completely impermeable. The design is based on intrinsically safe, closed-circuit technology, which allows it to be easily integrated into an existing process control system using terminal boxes and isolating amplifiers. The device can be reused after a rupture disc has opened; the only requirement is that the rupture disc itself be replaced, and this can be done without opening the pipeline.
Fluids and Solids Handling
Mill Grinds Sticky, Moist, and Fragile Materials
The CM540 sanitary cone mill performs gentle, low-energy size reduction of solids while achieving even particle distribution and producing minimal fines. Material is fed pneumatically or by gravity into a central milling chamber, where a rotating impeller accelerates it centrifugally against and through apertures in a conical screen and then into a receptacle below the milling chamber. The mill is suitable for delumping dried or hygroscopic materials that have agglomerated due to dampness or compaction, for intermediate sizing of wet product to enhance drying and granulation prior to tableting, and for regrinding out-of-spec product to be reintroduced to the process. It is intended for pharmaceutical, food, and chemical applications where contamination must be avoided. Models range in diameter from 3 in. for laboratory applications to 27 in. for production capacities up to 25 tons/hr.
Drum Dumper Transfers Materials without Creating Dust
The TIP-TITE mobile drum dumper enables dust-free transfer of bulk materials from drums into process equipment and storage vessels. It is mounted on a mobile frame with quick-action floor jacks for stable operation. A hydraulic cylinder raises the drum carriage, sealing the drum rim against a discharge cone, after which a second hydraulic cylinder tips the carriage-hood assembly and drum, stopping at a preset dump angle of 45 deg., 60 deg., or 90 deg. As the assembly approaches its fully tipped position, the outlet of the discharge cone mates with a gasketed receiving-ring inlet fitted to existing process equipment or to the lid of an optional hopper with integral pneumatic, tubular cable, or flexible screw conveyor, creating a dust-tight seal. Once the discharge cone is seated against the gasket, a pneumatically actuated slide-gate valve opens to allow material to enter the receiving vessel.
Electronic Pressure-Compensation System Improves Reliability
An electronic pressure-compensation (EPC) system is now available with the manufacturer’s high-accuracy loss-in-weight feeders, or it can be retrofitted to existing feeders, even in systems with perceivable pressure fluctuations. In a closed feeding system, pressure buildup inside a feeder can significantly impair weighing accuracy. Typical mechanical pressure-compensation systems are sensitive to structural factors and machine alignment, making reliability an issue. This electronic device ensures accurate and steady pressure compensation in feeder hoppers, has a lower initial cost, and is easier to install than mechanical systems. Sensors can be positioned on the feeder hopper and, if required, on the material discharge tube.
Compact System Dries, Cools, and Classifies Plastic Pellets
The Witte 400 cools plastic pellets from 100°C to 50°C at rates of up to 5,000 lb/hr. Multiple functionalities, including drying, cooling, dedusting, and classifying, are contained within the compact unit. Interior components are easy to access for cleaning and inspection. A motorized, hands-free safety hoist; a steam, gas, or electric process air heating system; and a variety of other custom options are available. Manufacturers of nylons, polyesters, polyurethanes, polystyrene, polyethylene, polypropylene, poly-vinyl chloride, and other commodity and engineering resins will find this system applicable.
Witte Co., Inc.
Software & Information Technology
Simulation Software Delivers Flowsheets Faster
CHEMCAD chemical process simulation software is now more intuitive and delivers professional, presentation-ready flowsheets faster and more efficiently. Version 7.0 includes an all-new graphics engine, an improved reporting engine, and a platform for future growth. The graphics engine makes building, rebuilding, and working with flowsheets easier; requires fewer mouse clicks and generally less work for common flowsheeting operations; and conforms graphics operations to standards set by other commonly used software tools. The reporting engine includes unit operations and flowsheets, three UnitOp color schemes, and enhanced customization features. This release will incorporate accomodations for a rebuild of the calculation engine and expansion of the reporting engine to be issued in future versions.
Tool Manager Maintains Efficiency and Accuracy

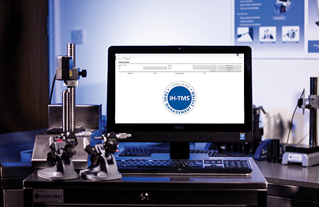

The IH-TMS tool management system enables proactive monitoring of tool rotations and tooling inventory and maintenance, which is of particular importance for pharmaceutical manufacturers. Tablet manufacturers can keep a record of tablet quantities by number of tablets, work order, or batch information. The system includes an in-depth guide to tooling specifications and troubleshooting, allowing any problems flagged by the system to be rectified. An archive of tablet and tool images and drawings works with an alarm to alert users of any problems, including over-compression and the need for tooling replacements or maintenance. The software is compatible with any language, including characters used in Japanese, Chinese, Arabic, and Russian, making it suitable for global operations.
App Supports Information Distribution and Mobility
Honeywell Pulse sends plant managers and supervisors notifications as well as real-time plant performance data directly to their smartphones. This allows users to stay connected to the enterprise no matter where they are in the world, helping to enhance efficiency and safety. The app provides customizable notifications; alerts from multiple data sources; and connectivity tools to drive collaboration. It expands the manufacturer’s Industrial Internet of Things (IIoT) network, which connects people, processes, and assets to optimize business results, improve safety, and increase mobility.
