Fluids and Solids Handling
Bulk Bag Unloaders Eliminate Dust Contamination
The Bulk-Out BFF bulk bag dischargers prevent dust from escaping when feeding material into a vacuum conveying line. The dischargers use a Spout-Lock clamp ring atop a pneumatically actuated telescoping tube that connects the clean side of the spout to the clean side of the receptacle to prevent dust contamination. A hoist lowers the bag, maintaining steady downward tension as it empties and elongates, and Flow-Flexer bag activators softly agitate opposite bottom edges of the bag to further promote material flow.

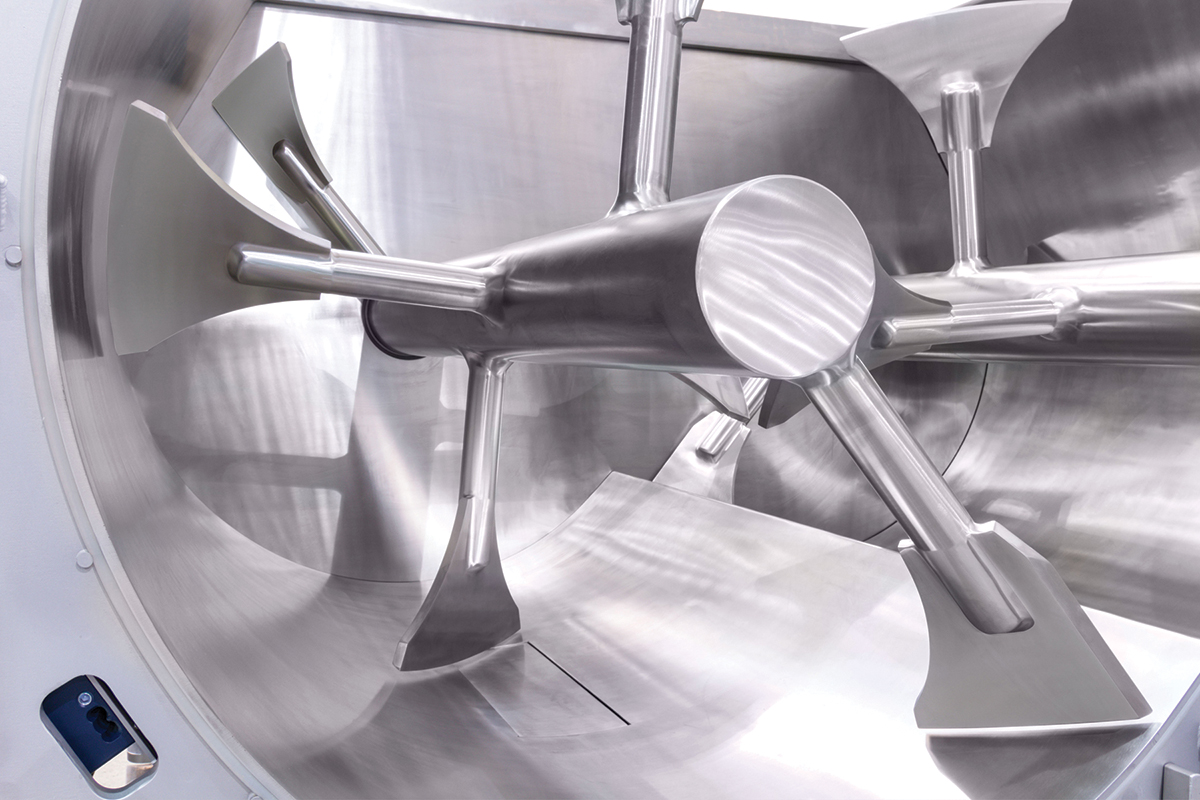

Batch Mixers Reduce Energy Consumption
The GMS Multiflux batch mixers have an updated drive that is 12% more energy efficient than previous models. By increasing efficiency, these mixers reduce costs and improve sustainability. The batch mixers operate at a wide range of speeds and can fully homogenize powders and liquids within 30 sec. The mixer’s design is well-suited for food and chemical manufacturing applications. The mixers can also be integrated into fully automated operations as needed.

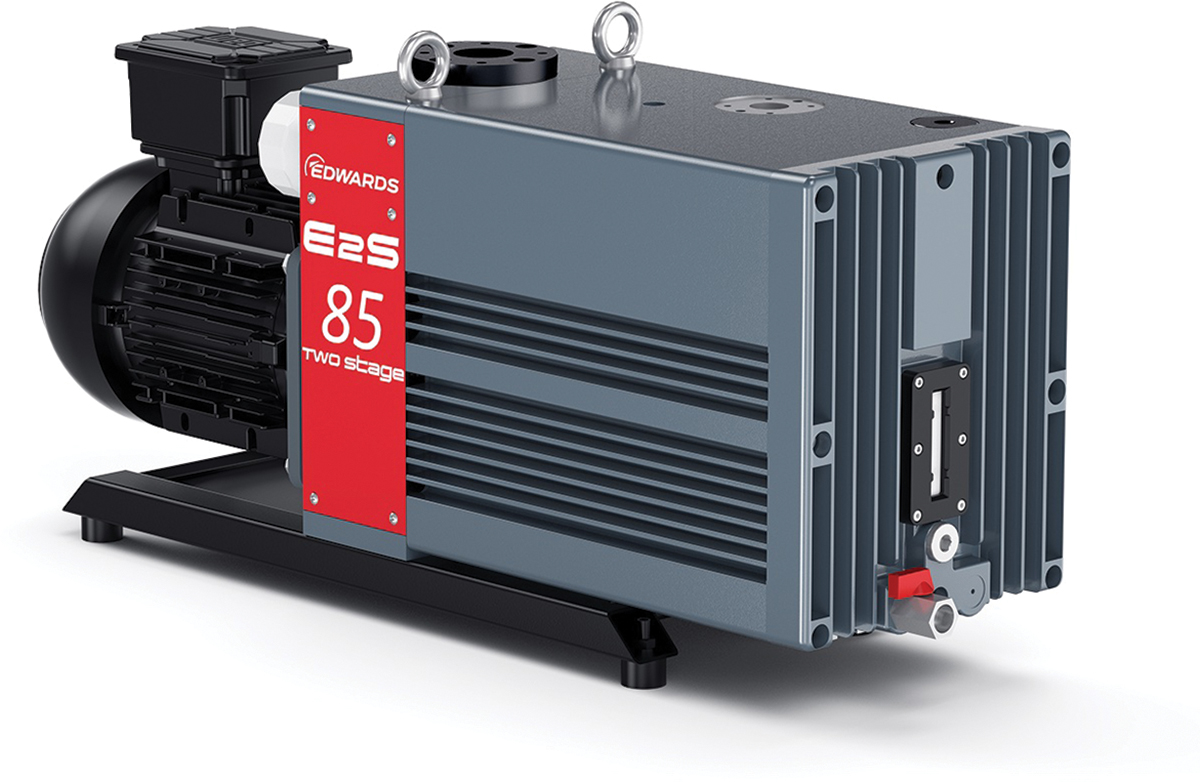

Rotary Vane Vacuum Pumps Operate Quietly
The E2S oil-sealed rotary vane vacuum pumps are designed for low and medium vacuum in industry and research settings. They have a pumping speed of 90 m3/hr and can generate a vacuum of 3 × 10–3 mbar. The plain bearings are made of sintered steel that produces low noise. The design prevents the bearings from drying out even with low oil lubrication. The pumps have an integrated oil pump that allows for continuous lubrication over the entire pressure range. The adjustable gas ballast function can pump out water vapor if the application requires it. The pumps are available in three different sizes.
Vacuum Stations Introduce New Backing Pump Option
The TURBOLAB Core range of vacuum stations now includes the SCROLLVAC 3S backing pump. The backing pump increases the pumping speeds of the TURBOLAB Core 90i and 250i from 1.4 to 3 m3/hr and delivers an ultimate pressure of 0.1 mbar. The backing pump uses an oil-free scroll technology that is more environmentally friendly than alternatives and provides extra protection in case of power failure. The backing pump is designed for both industrial and scientific settings, with simple plug-and-play functionality and fully replaceable parts for easy maintenance.
Diaphragm Pump Adapts to Vacuum Requirements
The N 938 diaphragm gas pump provides precise vacuum control in various applications such as fuel cells, medical devices, and laboratory equipment. It can achieve flowrates of 7 L/min to 35 L/min as a single-head version or 11 L/min to 53 L/min as a dual-head standard version, with a final vacuum of up to 140 mbar and an operating pressure of 1 bar. Available pump head materials include anodized aluminum, polyphenylene sulfide (PPS), or stainless steel.

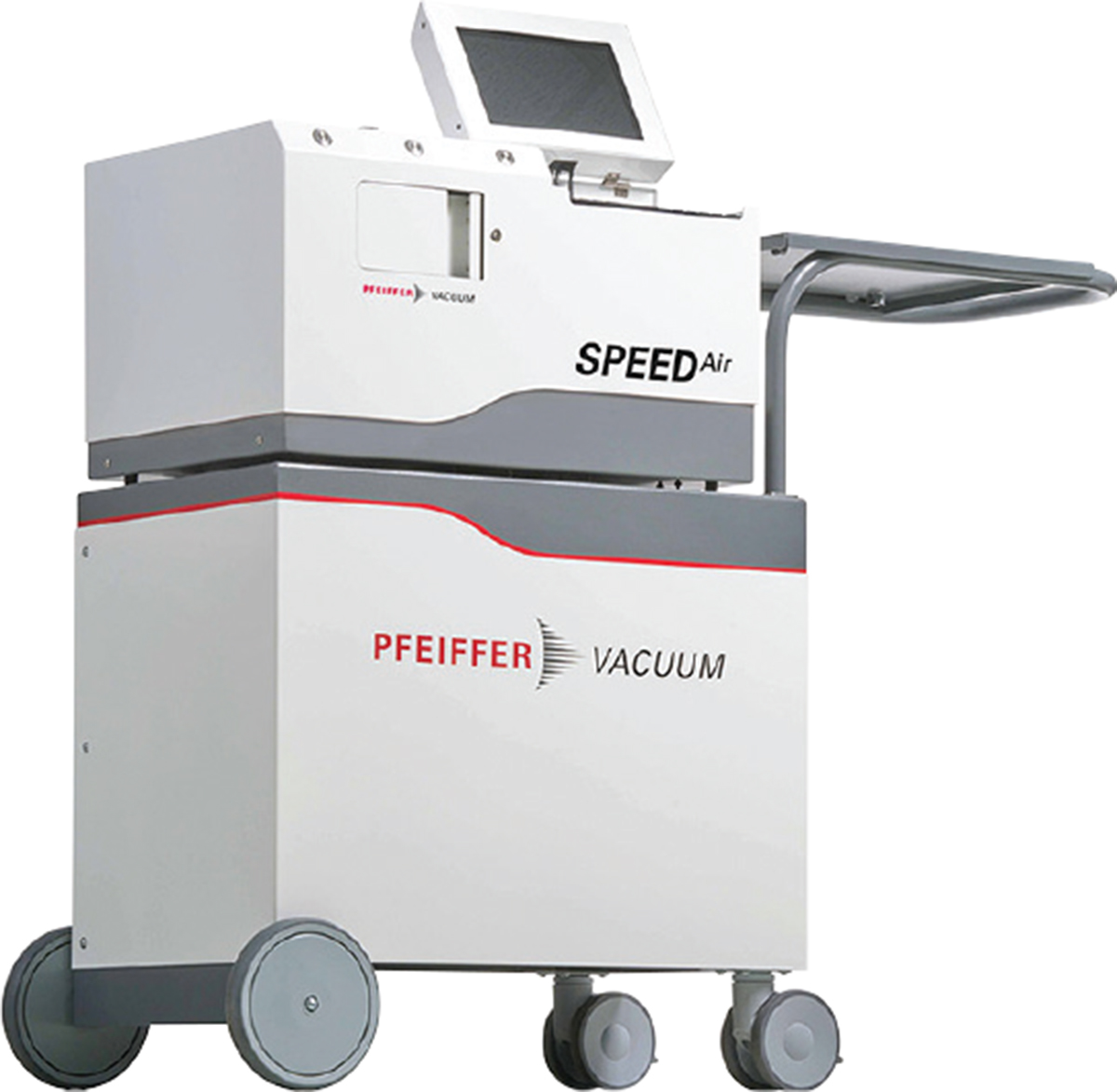

Device Detects Leaks in Pharmaceutical Packaging
The SpeedAir 3050 system tests for leaks in non-porous pharmaceutical containers. The unit uses a non-destructive testing (NDT) approach to container closure integrity testing (CCIT), detecting leaks in packaging without compromising the integrity of the tested package. The system is compatible with both flexible, liquid containers and rigid, solid containers. This system is efficient, requiring only 30–45 sec per test. It meets the ASTM Standard F3287-17 for leak detection, and it is capable of detecting leaks up to 1 µm.

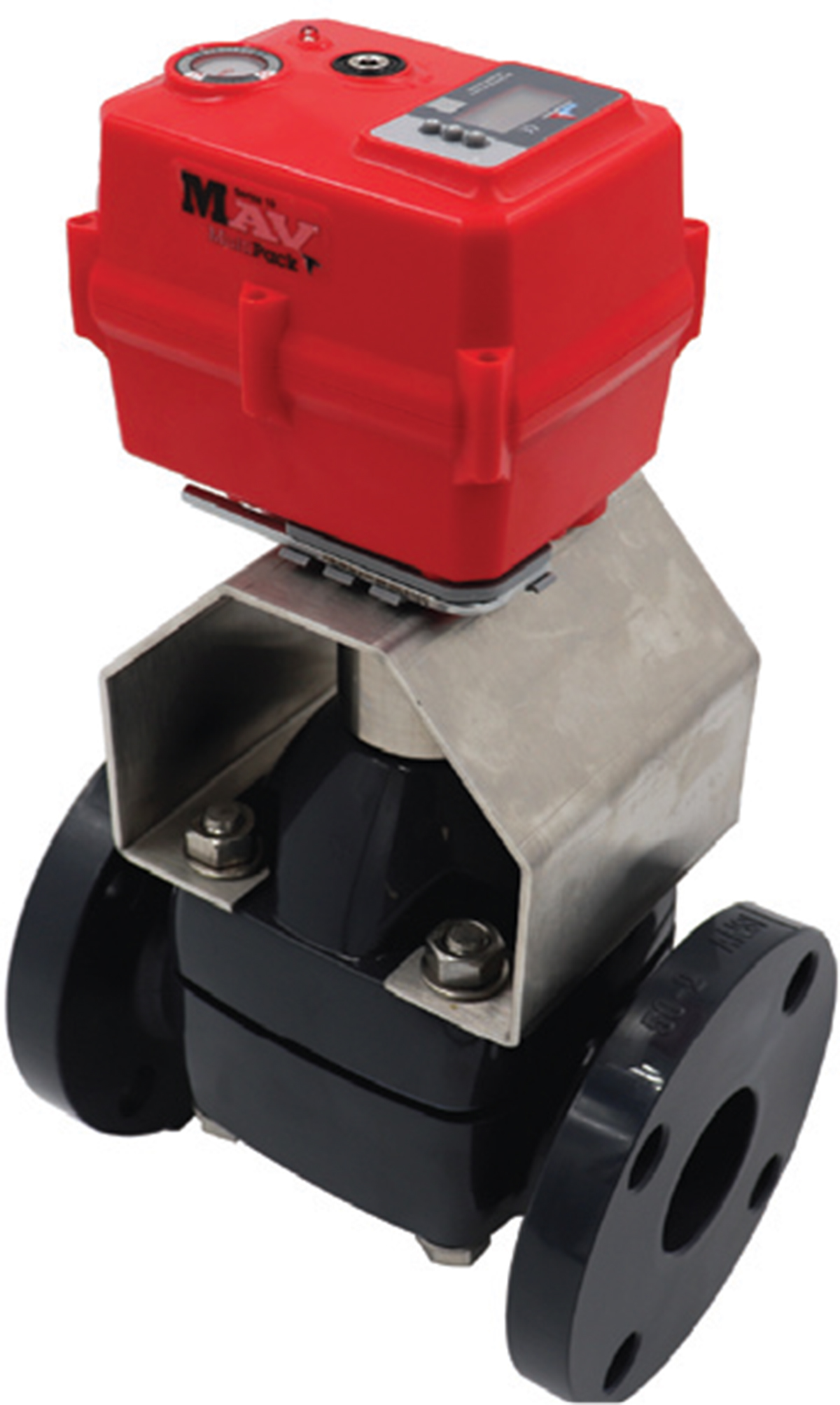

Electric Actuator Regulates Thermoplastic Fluid Flow
The Series 19 MAV MultiPack multiturn actuator controls thermoplastic fluid flow in diaphragm and gate valves with up to 4-in. diameters. The actuator has multi-voltage capability, a visual position indicator, an LED light to indicate valve position or fault, and auxiliary contacts. It has a permanently lubricated steel gear train and a National Electrical Manufacturers Association (NEMA) 4X engineered resin enclosure that is corrosion-resistant.
Human-Machine Interface Portfolio Accommodates Most Applications
The FactoryTalk Optix human-machine interface (HMI) portfolio allows industrial organizations to create HMI solutions that meet an application’s needs. The portfolio’s open architecture can adapt the interface’s software to fit a customer’s need for scalability, flexibility, and interoperability. The OptixPanel graphic terminals offer quick setup and come pre-loaded with the FactoryTalk software to simplify installation. The customizable ASEM 6300 industrial PC comes in box or panel form. Remote monitoring solutions are also available, allowing operators to troubleshoot and monitor process data more efficiently.
Temperature Sensors Now Have a Wider Temperature Range
The HANI series of temperature sensors for pipes and tanks have been upgraded. For all models, the temperature ranges have been increased from the previous 0–100°C to –20–100°C. In addition, the sensors now include an Ingress Protection (IP) 67 rating for applications in the food and beverage industry. This rating indicates that the sensors are protected against immersion in up to one meter of water for 30 min, and they are capable of withstanding harsh washdown environments.

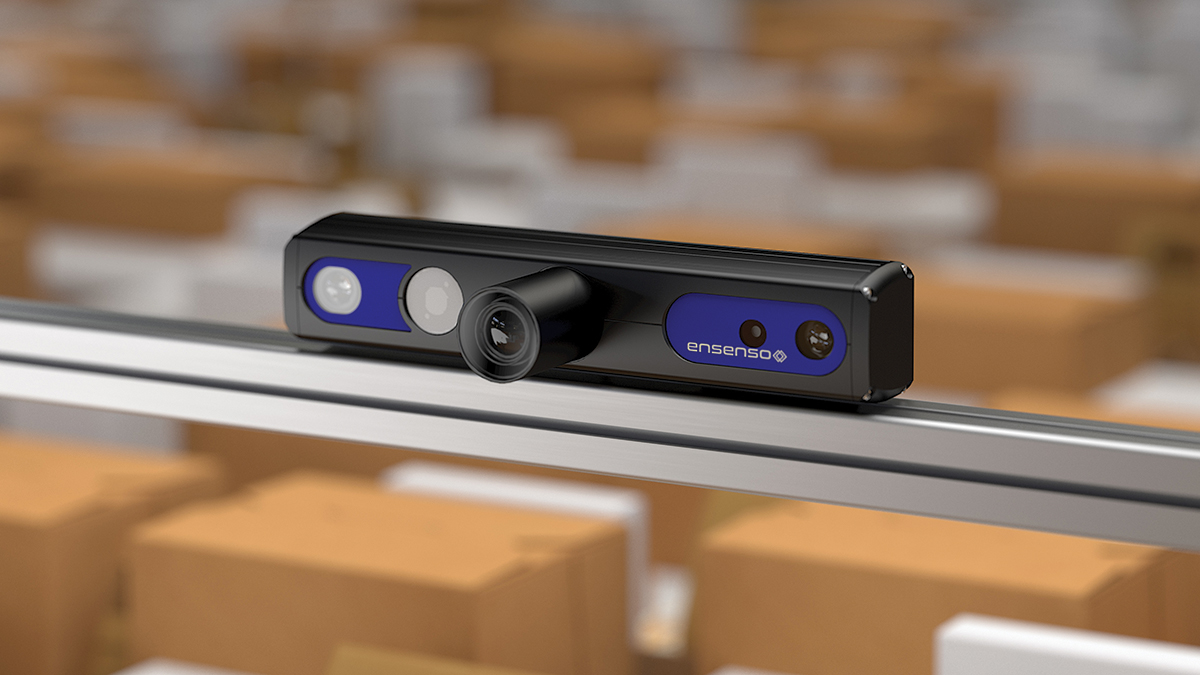

3D Camera Captures Fine Details
The Ensenso C 3D camera generates both 3D point clouds and 2D RGB images in a single device. This allows for realistic 3D imaging and supports subsequent processes such as sorting tasks. The compact housing is IP65/67 rated, protecting the components from the environment. The camera is pre-configured and ready to use, making it suitable for various industrial applications like quality control, assembly lines, and picking tasks. It offers 200-W projector power with a resolution of 5 MP, delivering precise data in large-volume applications. The camera achieves a reproducible Z-accuracy of 0.2 mm at 2-m object distance with its large baseline and small field of view. The camera minimizes temperature-related deviations of depth values to ensure accuracy under changing ambient light conditions.
IDS Imaging Development Systems GmbH
Dynamic Image Analyzer Simplifies Particle Characterization
The Litesizer DIA 500 is a dynamic image analyzer (DIA) that allows for the characterization of particle size and shape between 0.8 µm and 8,000 µm, capturing up to hundreds of thousands of images of the particles per second. The instrument is compatible with three dispersion units — Liquid Flow (wet), Dry Jet (compressed air), and Free Fall (gravitational fall) — that can be easily switched using the Quick-Click feature. It features several automated functions, including filling, draining, rinsing of dispersion liquid, and setting feed rates for dry samples. The instrument’s operating software, Kalliope, provides easy access to all important measurement information on a single-page workspace. The instrument has safety features to protect users from dangerous sample spread and protect the instrument from damage.

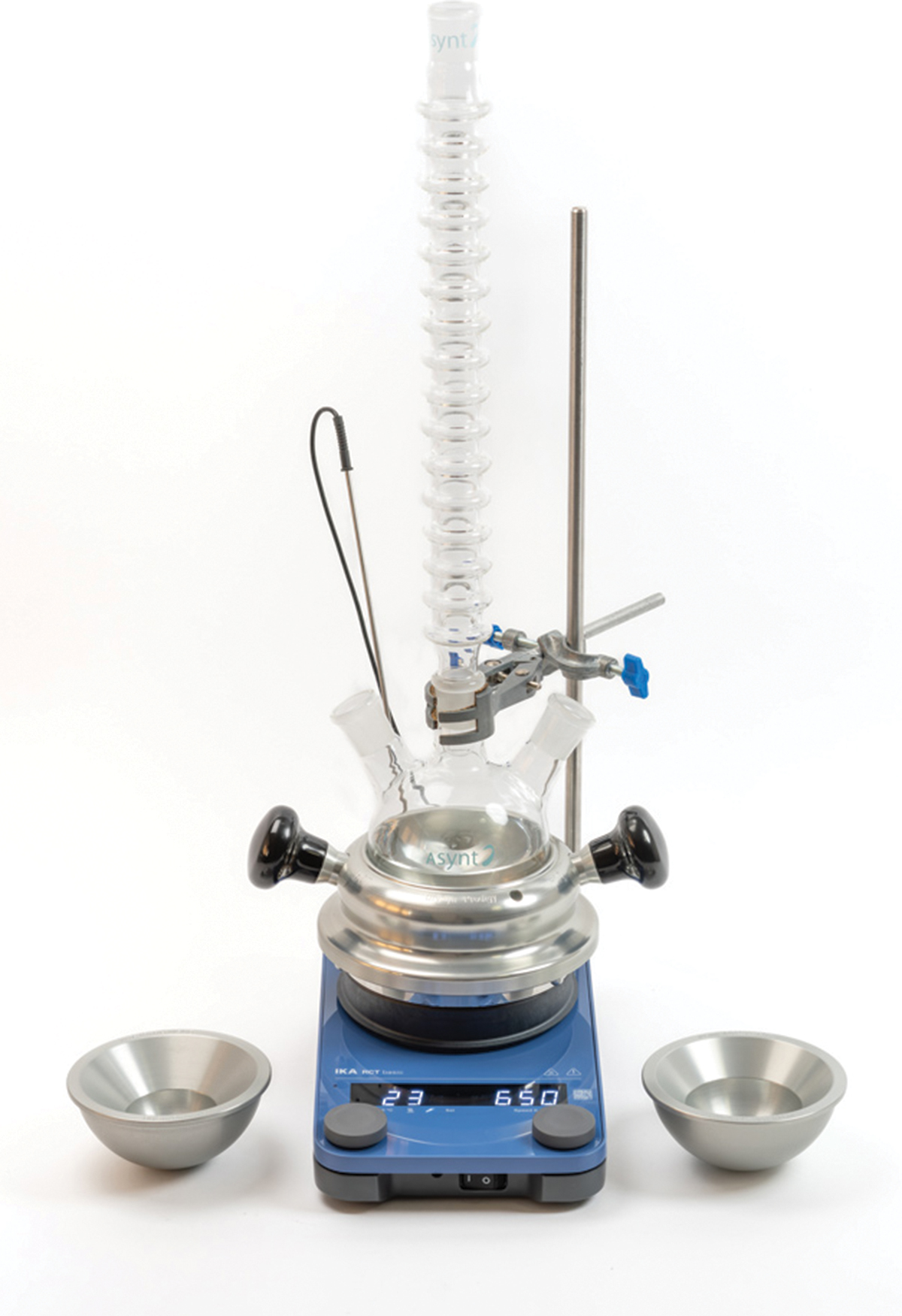

Round Bottom Flask Holder Uses Fully Recyclable Materials
DrySyn Prodigy is a round bottom flask holder made of fully recyclable materials. The holder enables oil-free heating of round bottom flasks, with inserts accommodating different flask sizes from 50 mL to 500 mL. It works seamlessly with any laboratory magnetic stirring hotplate. The holder provides fast and uniform heating, magnetic coupling, and reaction visibility, enabling efficient and reproducible reactions with ease. Its design eliminates the need for potentially hazardous oil baths and heating mantles, improving sustainability in the lab by reducing power consumption and oil disposal requirements.

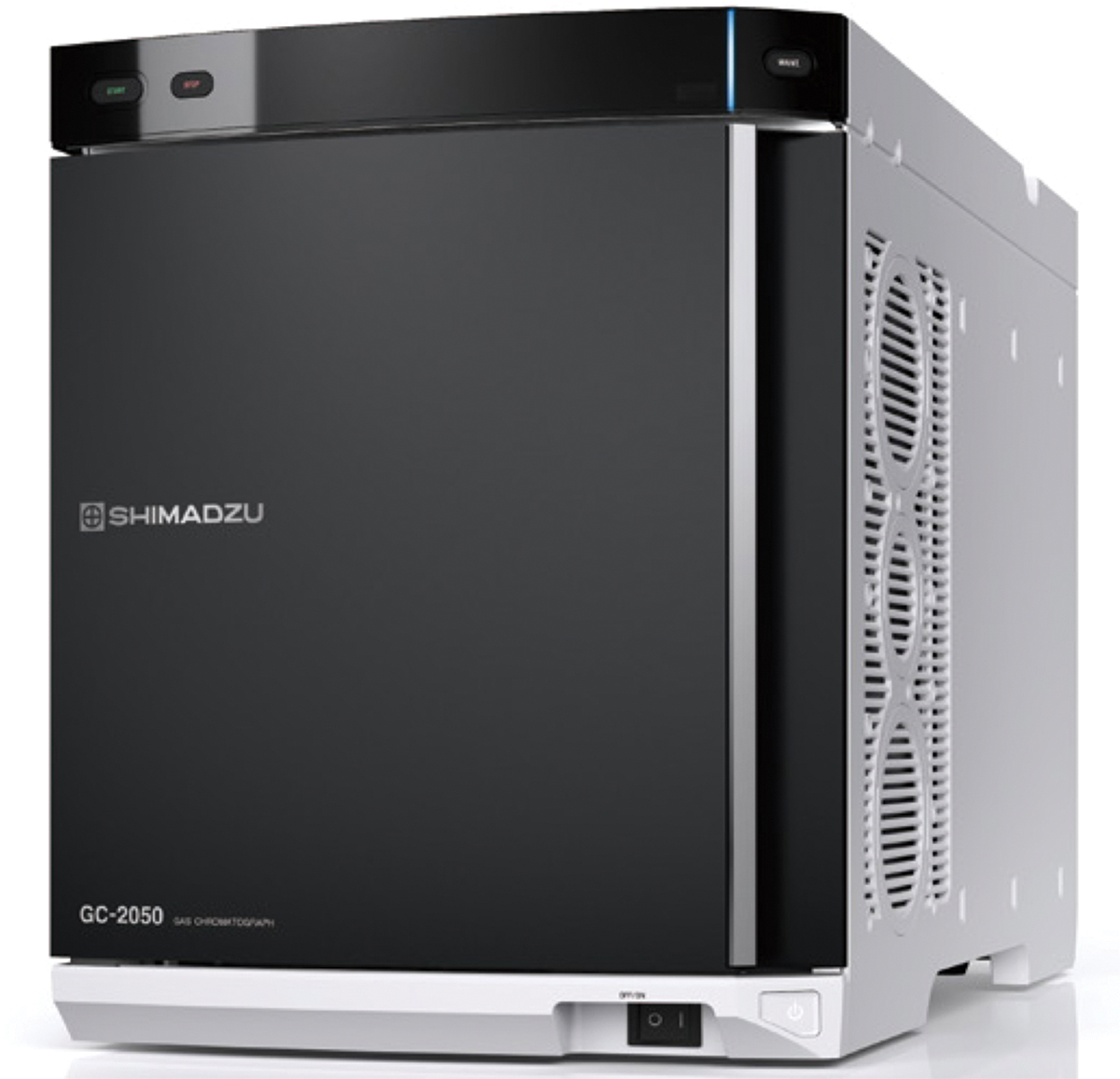

Gas Chromatography Unit Saves Bench Space
The Brevis GC-2050 gas chromatography unit is a compact version of the GC-2030, offering high-precision analyses while saving laboratory bench space. Its small footprint and low space requirements allow for simultaneous operation of two analytical lines with standard capillary columns. The GC-2050 uses the same techniques for sample injection, detection, and gas control as the larger GC-2030. It offers a versatile selection of carrier gases, including hydrogen, helium, nitrogen, and argon, with various techniques for minimizing gas consumption to reduce running costs. In addition, the unit has an Analytical Intelligence feature that simplifies operation and maintenance.
Automated Capper Reduces Human Error in Labs
The Sigma STR caps single-screw cap tubes automatically. This capper removes operator error in labs, and the constant torque value produces consistent results. It can be used as a standalone unit, and it is compatible with Sarstedt, Micronic, Azenta, and Greiner Bio-one tubes. The unit can cap a bottle in seven seconds and store more than 500 caps at a time. The operating temperature range is 10–30°C.

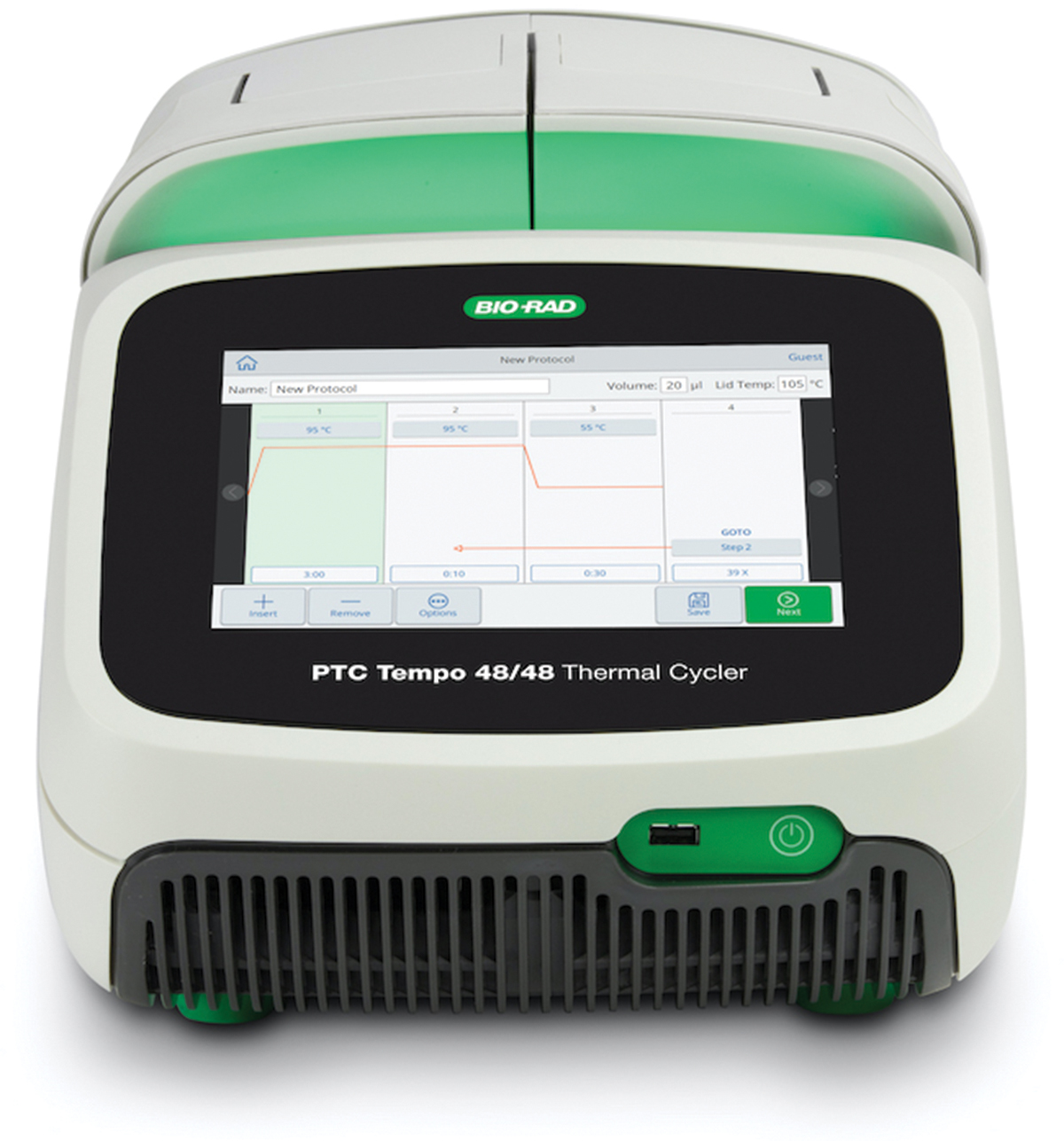

Thermocyclers Streamline Polymerase Chain Reactions
The PTC Tempo 48/48 and PTC Tempo 384 are thermocyclers for polymerase chain reactions (PCR) in basic and translational research, process development, and quality control applications. The PTC Tempo 48/48 has two chambers, allowing for two simultaneous runs, while the PTC Tempo 384 features a motorized lid and is suitable for high-throughput and automated applications. The thermocyclers use the BR.io cloud platform to simplify monitoring and control.
Bio-Rad Laboratories, Inc.
Next-Generation Sequencing Unit Reduces Hands-On Time for Genome Sequencing
The Miro Canvas system automates complex next-generation sequencing (NGS) library preparation and hybridization protocols for genome sequencing applications. The cartridge design minimizes reagent consumption by up to 75%. The system can automate exome and other hybrid capture protocols, dramatically reducing hands-on time to only 15 min per run. Verified protocols for short- and long-read sequencing applications ensure high-quality results. The system eliminates the need for batching and allows specimens to be processed upon receipt.

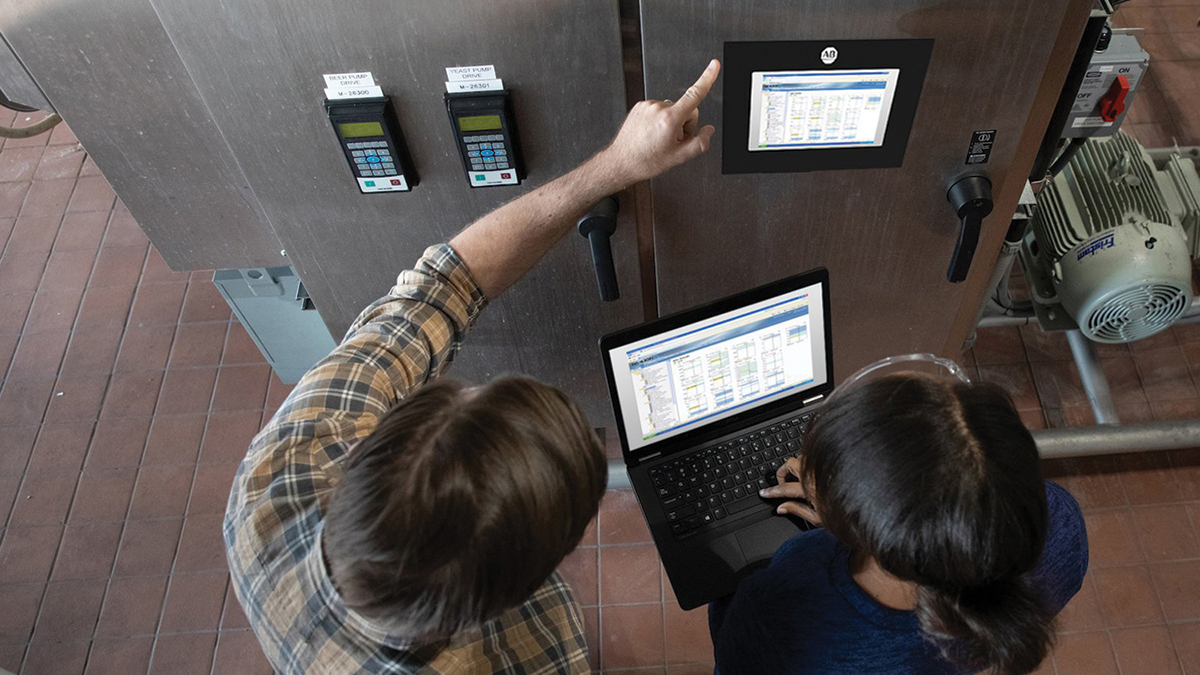

Plant-Wide Monitoring System Tracks Valve Health
The Plantweb Insight Valve Health application software monitors the health of valves within industrial systems. The application allows operators to visualize and analyze the functionality of multiple valves simultaneously. The system alerts operators when maintenance is necessary, reducing downtime and helping to monitor valve wear and tear. The software provides explanations, recommendations, and suggested times to take action. It prioritizes repair and maintenance activities based on repair urgency status, valve health index, financial impact, criticality, and alerts.

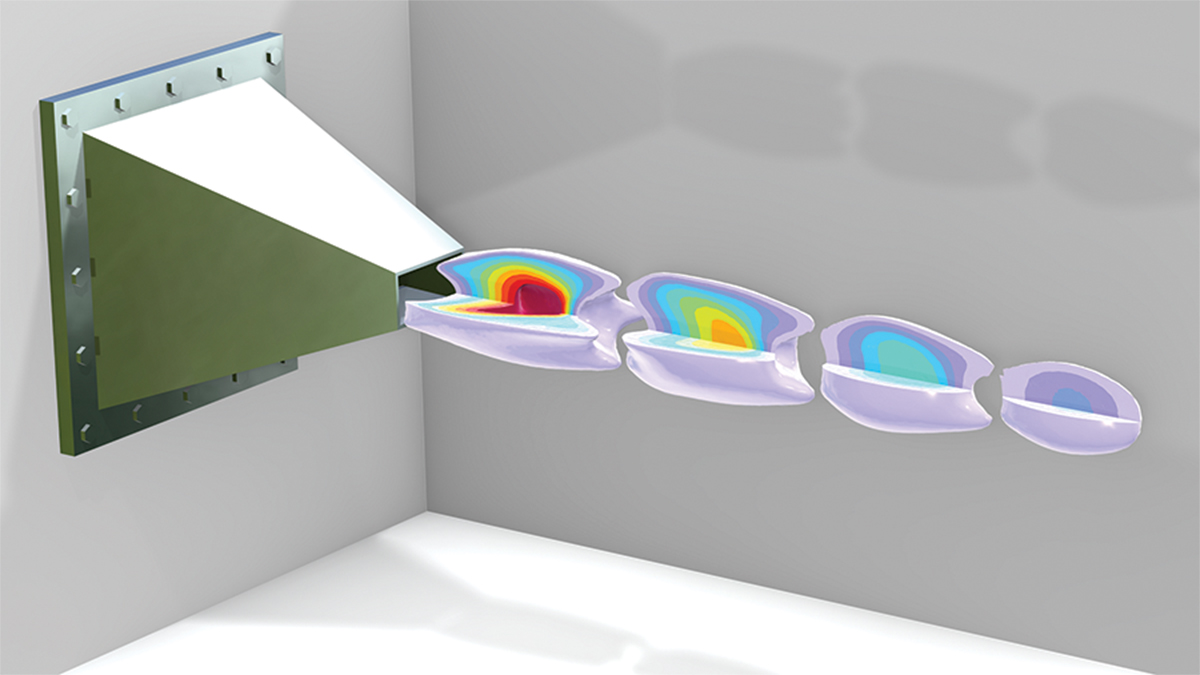

Updated Simulation Program Speeds Up Computations
Multiphysics version 6.2 is the newly released edition of the simulation software that models devices and processes in engineering, manufacturing, and research applications. This update has improved modeling capabilities for electric motors, which provide up to 40% faster turbulent computational fluid dynamics (CFD) simulations. Boundary element analysis (BEM) speed is now seven times faster for acoustics and electromagnetics when running on clusters. Version 6.2 includes a variety of other improved modeling capabilities, such as seven turbulence models for high-Mach-number flow, analysis of light propagation through liquid crystals, and extended damage, fracture, and contact modeling.
New eBook Guides Users in Pipetting
This free eBook provides a complete guide to pipetting, covering various topics, including an overview of the different types of pipettes and how to use them, pipetting best practices while addressing ergonomic considerations, and tips for maintaining and calibrating pipettes. Proper knowledge of pipetting techniques helps achieve high accuracy and precision, delivering reliable experimental results. The guide includes application notes on how other pipetting solutions can optimize liquid handling protocols.
Materials and Chemicals

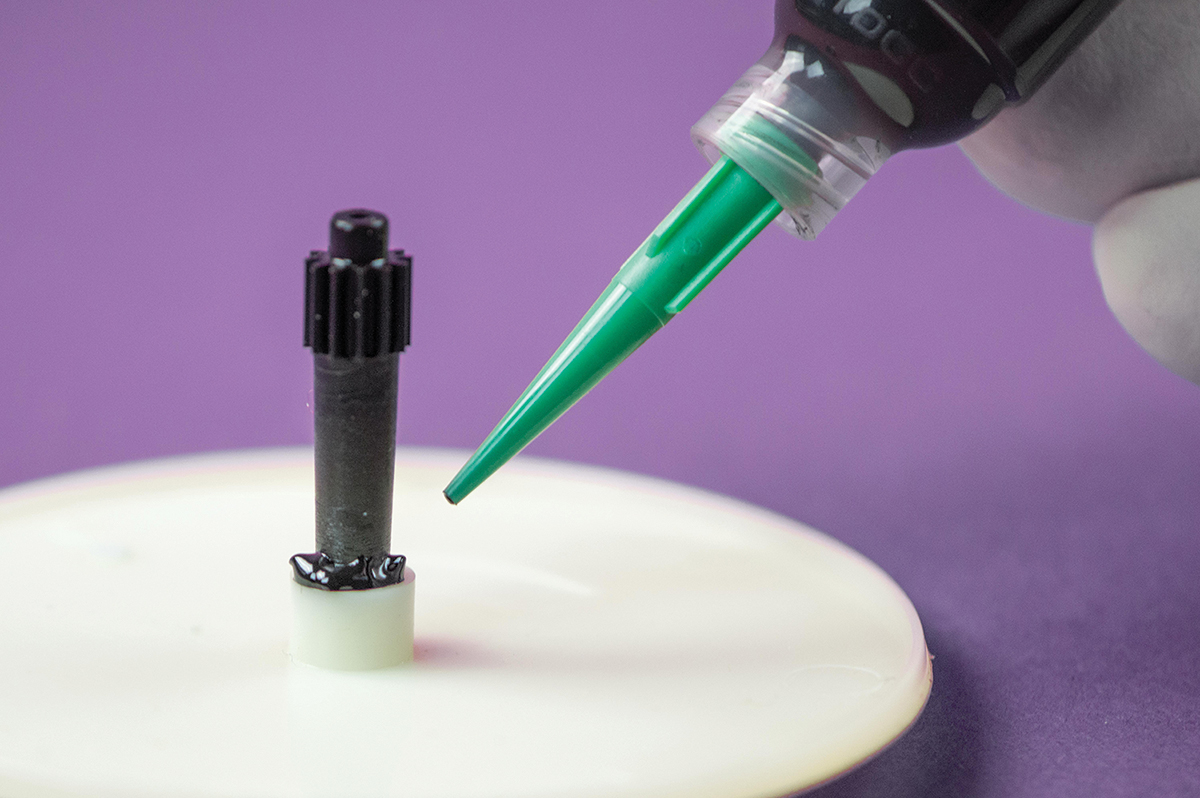

Epoxy Features a High Glass Transition Temperature
The Supreme 17HTND-2 is a one-component epoxy system for bonding and sealing applications. It features a high glass transition temperature of 410°F (210°C) and meets U.S. National Aeronautics and Space Administration (NASA) low outgassing specifications. It provides reliable electrical insulation and a tensile strength of 7,000–8,000 psi. The epoxy is designed to withstand thermal cycling and has a wide service temperature range of –100°F to 550°F (–73°C to 288°C). It can bond to several different types of materials, including metal, ceramics, composites, and plastics.
Environmental, Health, and Safety
Air Filter Captures a Variety of Contaminants
The CamCarb XG filters remove gases, molecules, and vapors from the air to reduce odor, pollution, and corrosion. These filters capture difficult-to-filter contaminants that cannot be removed by standard air purifiers, including a variety of volatile organic compounds (VOCs), sulfur dioxide, nitrogen dioxide, ozone, and acidic gases. Depending on the application, each filter can be filled with activated alumina, activated charcoal, impregnated activated charcoal, or a combination of these materials. The filter’s updated design is 35% more energy efficient than alternative products.
Gas Detector Adds Real-Time Connectivity
The G6 single-gas detector now features real-time connectivity and an emergency SOS feature for workers in critical situations. The device offers expanded data and reporting analytics, along with two new service plans starting at $10 per month. The detector is designed to protect workers from exposure to toxic gases and hazards in industrial environments, using instant cloud connectivity and location technology to alert users of gas contact and send notifications to emergency contacts. The device can measure H2S, CO, O2, or SO2 gas levels and has a lifespan of four years with up to one year of battery life from a single charge.
