Fluids and Solids Handling

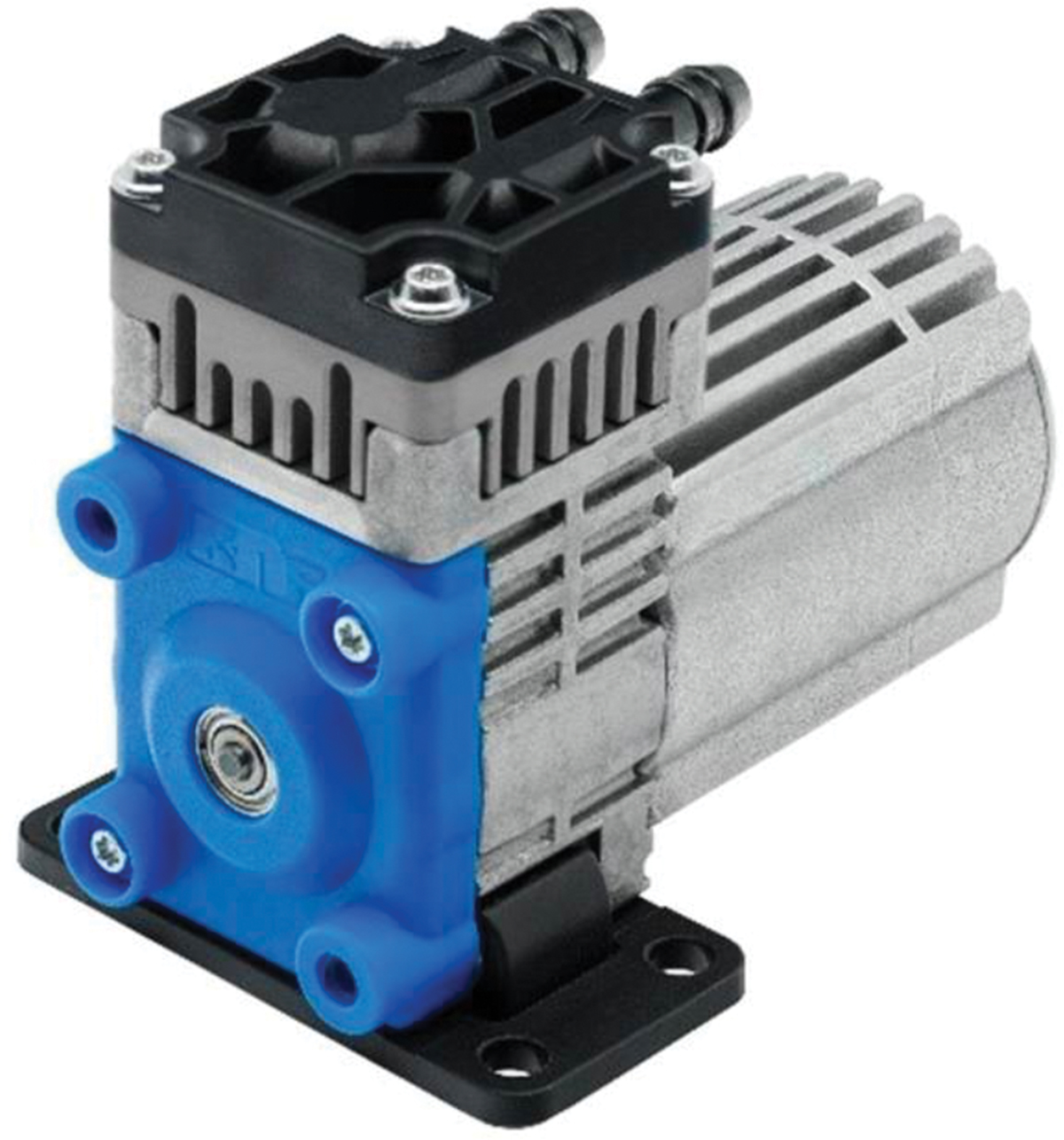

Swing Piston Pump Delivers Constant Pressure with Little Noise
The NPK 02 is the latest addition to the manufacturer’s line of swing piston pumps, offering a compact solution designed for high-pressure, low-noise applications. This swing piston pump can maintain constant high pressures up to 2.1 bar and flowrates up to 1.8 L/min during continuous operation. Combined with a finned pump head optimized for efficient heat dissipation and noise reduction, these characteristics make it well suited for use in medical, gas monitoring, and compressed air applications.
KNF

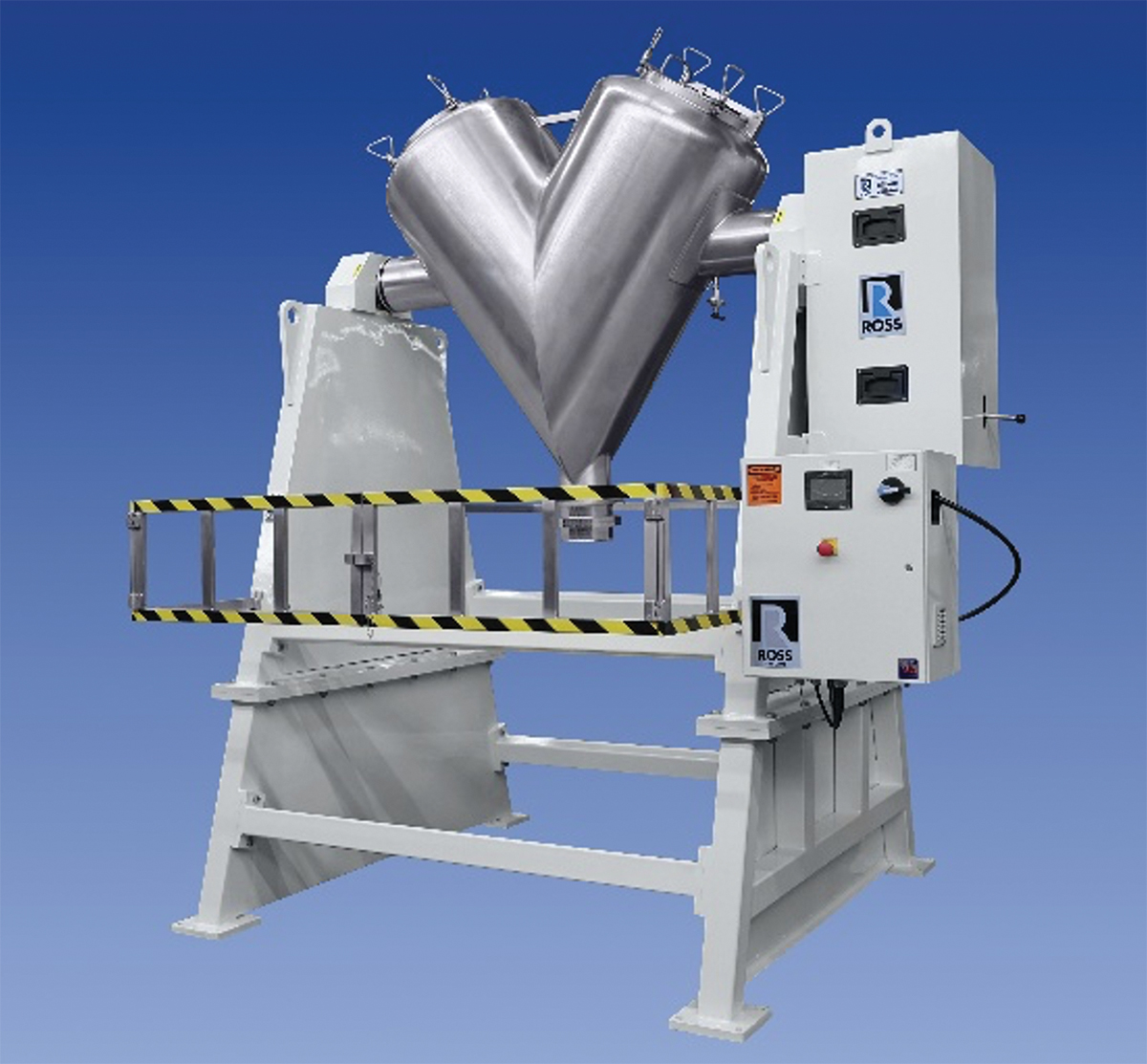

Blender Provides Low-Impact Mixing for Diverse Mixtures
The V-Cone blender (VCB)-10 provides gentle, consistent mixing for materials, ensuring even exposure and particle distribution. It features a 7.5 hp totally enclosed, fan-cooled (TEFC) motor that rotates a V-shaped vessel, which is useful for properly mixing friable ingredients, trace components, or materials with different densities. User safety is prioritized through the mixer’s safety rail assembly, which prevents unintended contact with the rotating parts. This setup includes a front gate with limit and safety interlock switches, as well as a fixed guard rail. A cycle timer, emergency stop button, and touchscreen all improve ease of use. This blender is useful in numerous industries, including coatings, food, and composites.
Charles Ross & Son Company

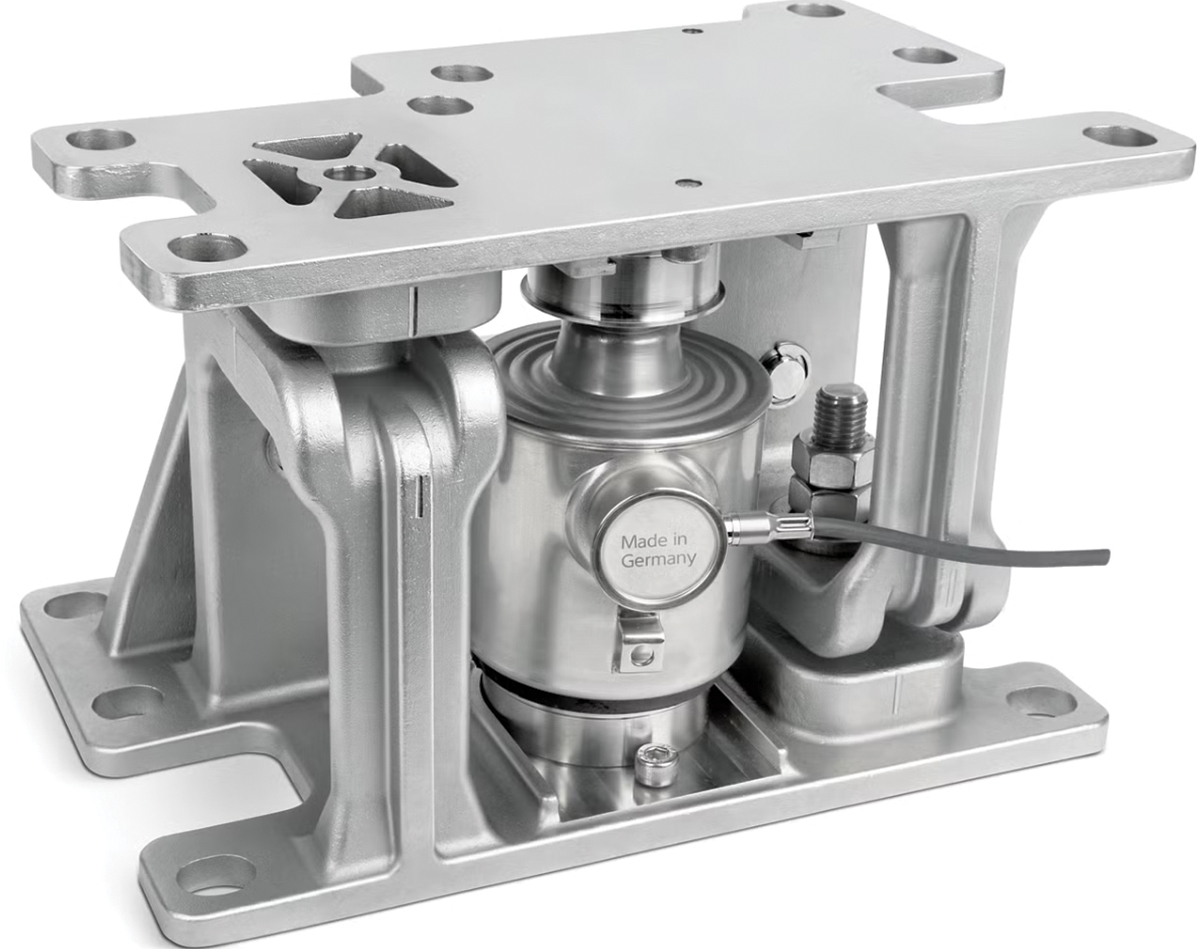

Mounting Kit Provides Safe Silo Weighing in Demanding Environments
The PR 6003 mounting kit for load cells is designed for silo weighing in demanding conditions, such as heavy winds, earthquakes, or vibrations. It features a load range of 0.5–75 m.t., can handle horizontal forces of up to 82 kN, and includes an anti-lift device that can withstand forces of up to 120 kN. Customers can choose between mild or stainless steel for additional corrosion protection, depending on environmental conditions. Additionally, a wind and earthquake calculation tool is available to optimize silo structure design for further disaster support. The mounting kit’s compact design and optional jack-up tool foster easy installation for improved user-friendliness.
Minebea Intec USA Inc.
Instrumentation
Dip Probe Measures a Wide Array of Ultraviolet Path Lengths
The Variprobe adjustable path-length dip probe provides accurate ultraviolet (UV) spectroscopy measurements for enhanced in situ dissolution analysis. With a single probe, users can select among four reproducible path lengths — 2, 5, 10, and 20 mm — to accommodate different concentrations without the need for multiple probes or interchangeable tips. This unit has been designed to be used with the manufacturer’s Opt-Diss 410 and Opt-Diss 405 in situ fiber optic UV system. The Variprobe product line includes probe tips and probe tip spacers, and all components in the product line are serialized for easier product management and quality assurance.
Distek, Inc.

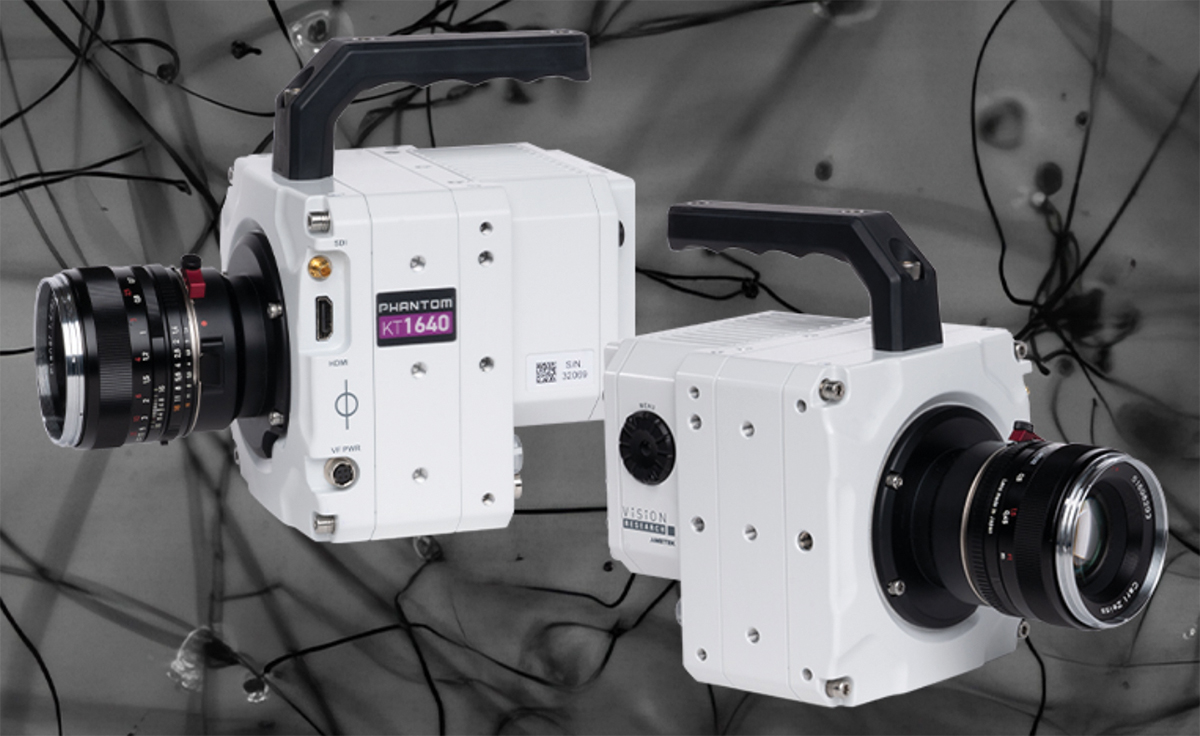

High-Speed Cameras Deliver High Image Throughput
The KT Series of high-speed cameras are compact and precise, incorporating 1 Mpx and 4.2 Mpx back-side illuminated (BSI) sensors. The series includes the 1-Mpx KT-1610 and KT-1210 and the 4.2-Mpx KT-1640 and KT-1240 models. The BSI sensor architecture sustains image throughput up to 16 Gpx/s, providing the maximum possible pixel resolution at the camera’s highest framerates, making them suitable for advanced research applications. These lightweight cameras improve onsite versatility and support CF-Express Type B, SDI, and HDMI video outputs.
Phantom/Amatek

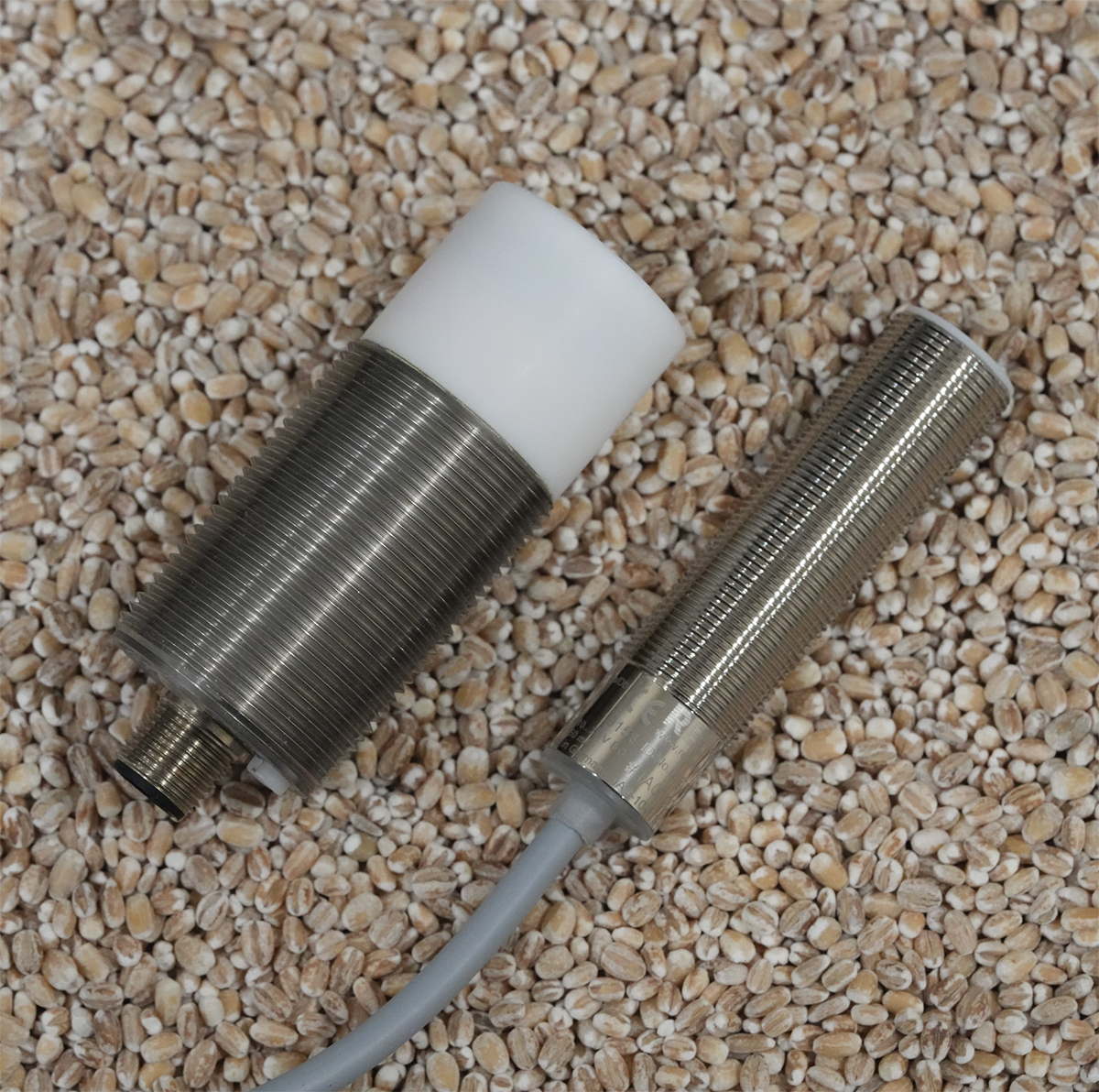

Sensors for Explosive Atmospheres Upgraded to Meet Safety Standards
The KAS-40 and IAS-30 series of intrinsically safe sensors have been upgraded to meet atmosphères explosibles (ATEX), International Electrotechnical Commission explosion (IECEx), and certified and tested for ETL in the U.S. (cETLus) standards. The sensors are designed for use in explosive environments in both Class I, Div. 1 gas and Class II, Div. 1 dust atmospheres. They are available in four different housing materials and are rated for temperatures from –20°C to 70°C (with some models also available up to 90°C). The sensors are user-friendly and can be easily installed with various clamp and connection styles.
Rechner Electronics Industries, Inc.
Laboratory Equipment
Liquid Chromatography-Mass Spectrometry System Analyzes Complex Samples
The QSight 500 liquid chromatography-tandem mass spectrometry (LC/MS/MS) system analyzes complex and challenging sample matrices found in food and beverage, sludge and wastewater, and biological applications. Due to its robust design, this system meets the needs of environmental and food testing laboratories, generating actionable results while reducing the sample preparation time required by similar units. This system features StayClean technology, which minimizes the risk of internal contamination and allows laboratories to maintain high throughput.
PerkinElmer

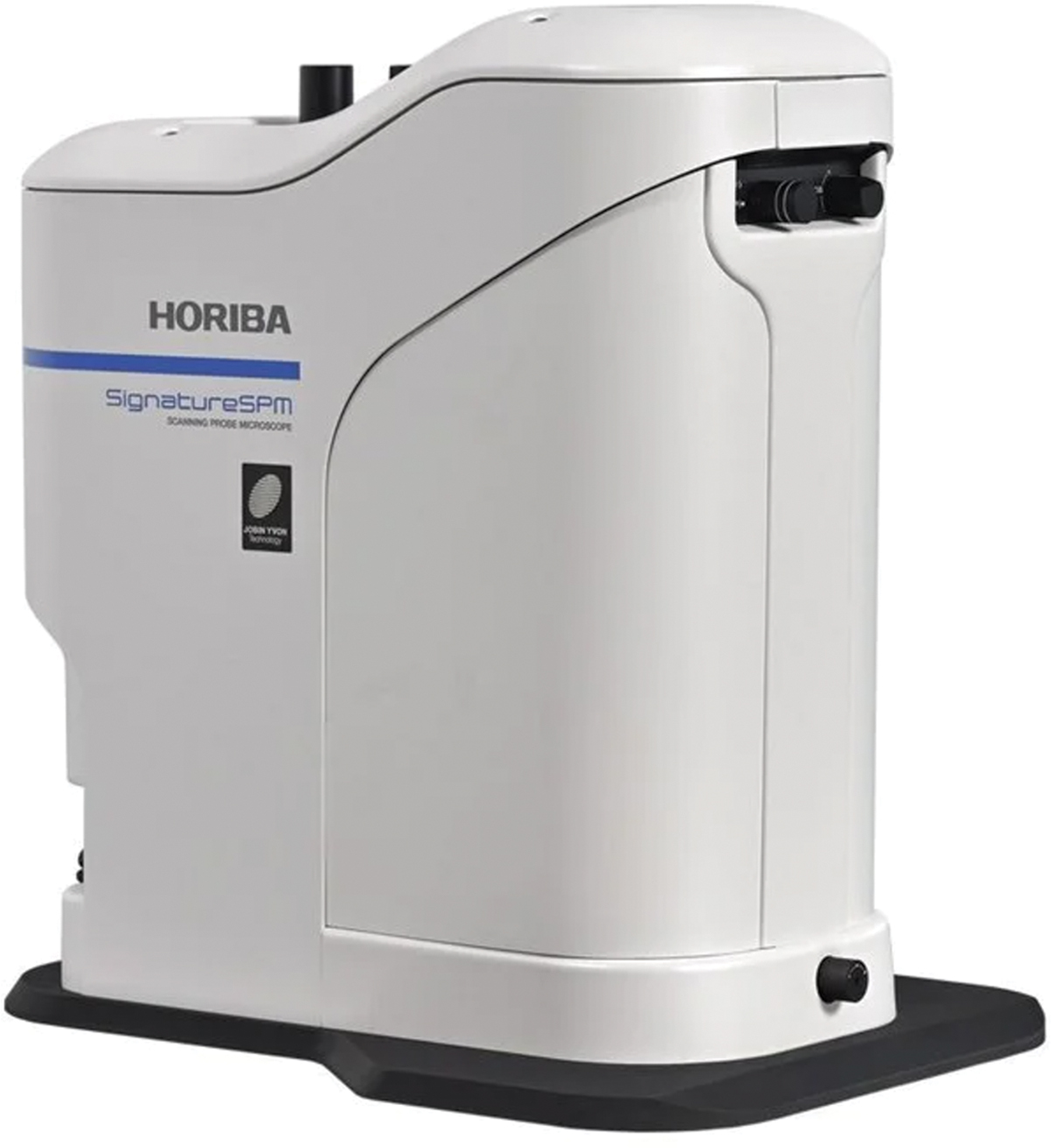

Characterization System Analyzes an Array of Physical and Chemical Properties
SignatureSPM is a multimodal characterization system that delivers colocalized measurements, providing insights into a material’s physical and chemical properties. By integrating an automated atomic force microscopy (AFM) platform and a Raman/photoluminescence spectrometer, it enables comprehensive analyses of topographic, mechanical, electrical, magnetic, optical, and chemical data in a single, real-time measurement. The system’s ability to provide a comprehensive understanding of a sample’s structure and functionality with precise spatial correlation between the different data types is well suited for materials science, chemistry, biology, nanotechnology, semiconductor research, and life sciences applications.
Horiba

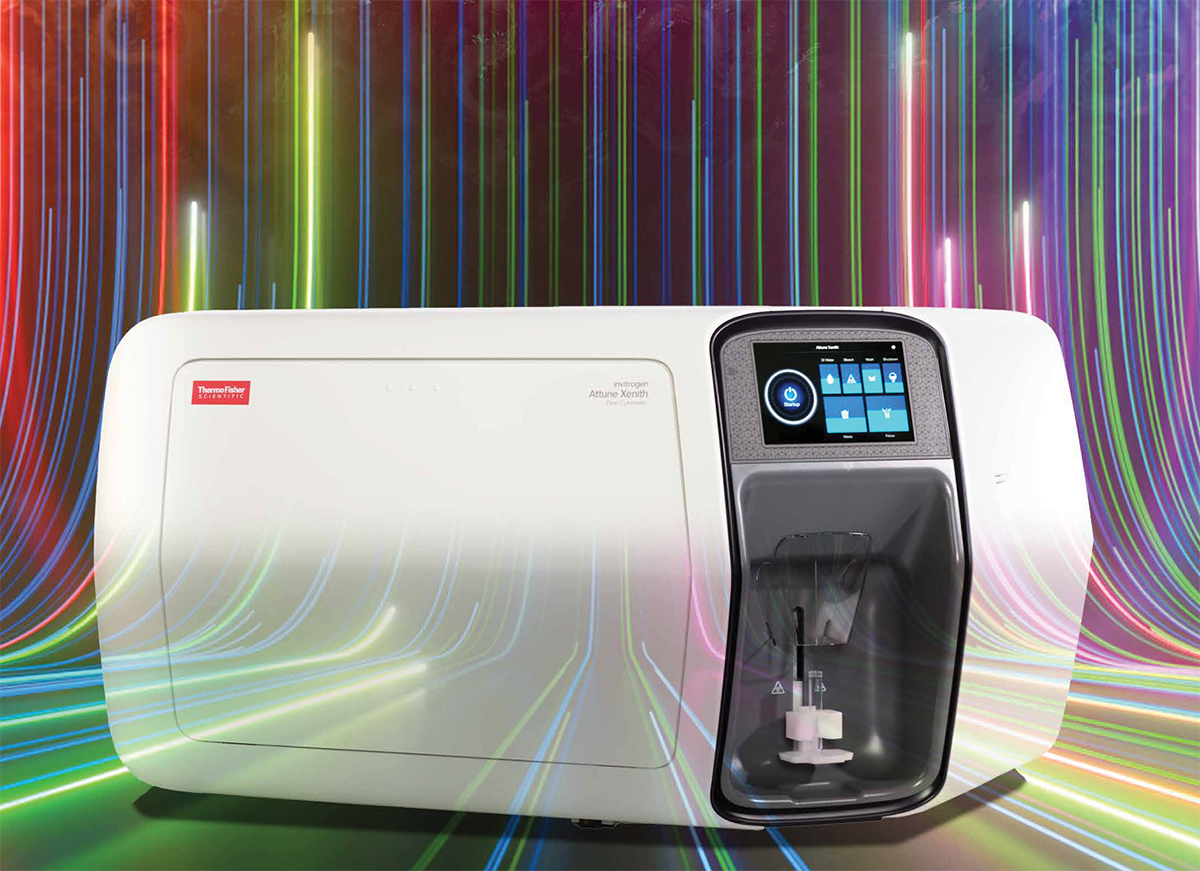

Flow Cytometer Decreases Processing Times
The Invitrogen Attune Xenith flow cytometer automates and streamlines workflows to deliver detailed and accurate insights from critical cellular samples in immunology and immunooncology laboratories. This device integrates high-speed acoustic focusing technology to accelerate sample analysis, and its clog-resistant design and decreased need for frequent fluid changes maximize uptime. Additionally, this cytometer improves on comparable technologies through its user-friendly software and enhanced data analysis capabilities. With six lasers and 51 fluorescent detectors, it enables comprehensive parametric analysis, providing detailed and accurate insights from each sample.
Thermo Fisher Scientific
Materials and Chemicals
Alkaline Degreaser Cleans Versatile Surfaces
MARVELLA is a concentrated alkaline degreaser fit for unusual and complicated cleaning situations. Its robust solvency and water-softening properties make it ideal for tough oil and grease removal. The solution can be used in diverse applications, including in food and beverage plants, steam or mechanical cleaning devices, or engines. MARVELLA should be used in concentrations of 1–20% by volume with either cold or warm water, depending on soil loading, and surfaces should be thoroughly rinsed with water after cleaning. If desired, technical representatives are available to help determine dilution rates, contact times, and temperature requirements, based on the application.
Madison Chemical Co., Inc.
Synthetic Fluids Portfolio Includes Three High-Performance Lubricants
The Synthetic-EF portfolio comprises three saturated synthetic polyol esters: the Synthetic-EF 5, 15, and 22. These lubricants meet the industry’s evolving environmental requirements without compromising quality or performance. The lubricants are fit for various applications; the Synthetic-EF 5 is biodegradable and engineered for demanding, low-temperature applications, while the Synthetic-EF 15 is designed for safety, with a high flash point and thermal and oxidation stability. The Synthetic-EF 22 is best for applications with a wide temperature range and boasts a high viscosity index and low acid number. The portfolio meets industry standards, including Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) biodegradability standards, and will soon be listed on the Lubricant Substance Classification List (LuSC) that complies with European Union (EU) Ecolabel standards.
Perstorp AB
