Fluids and Solids Handling

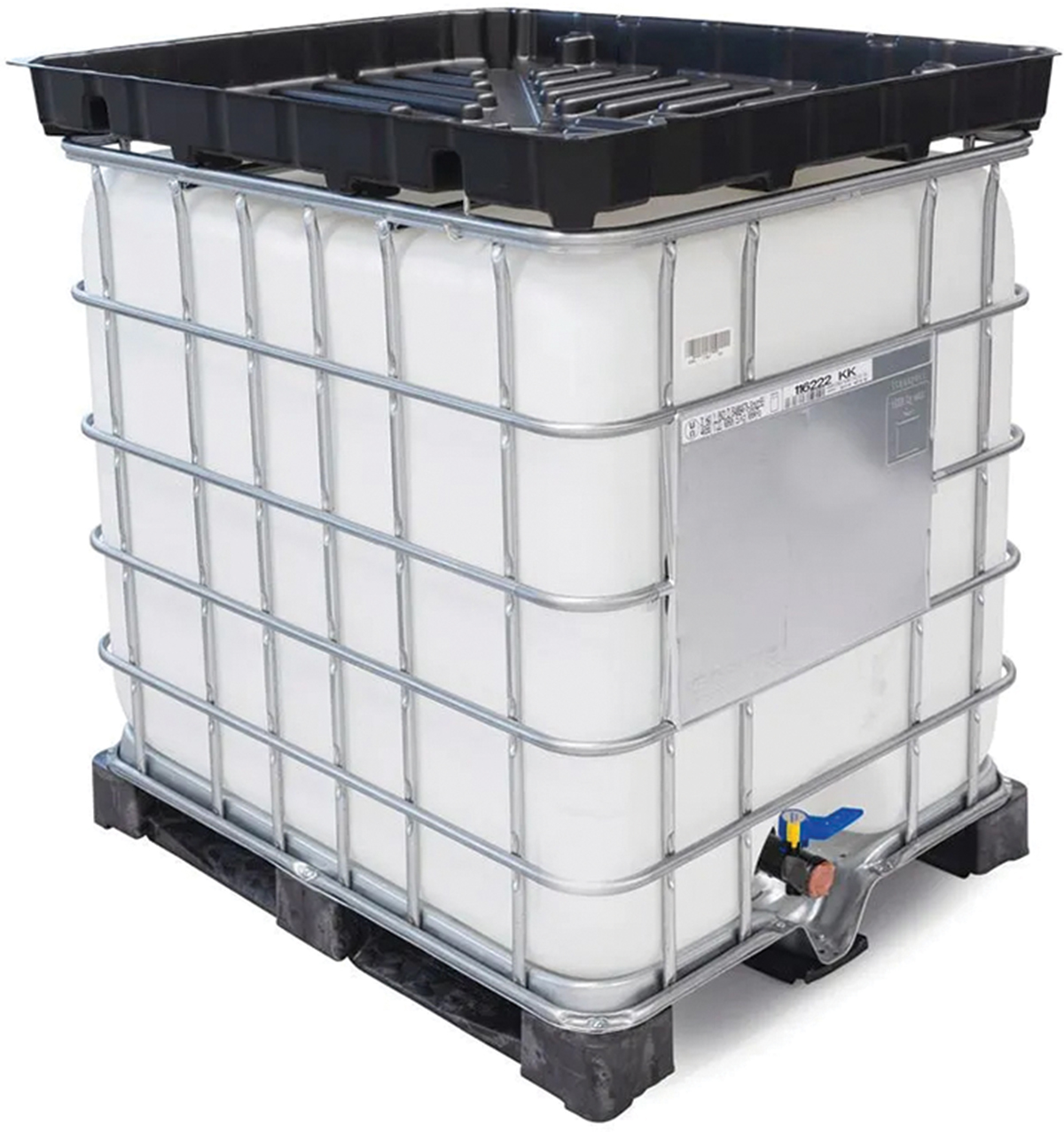

Funnel Allows for Fast and Safe Filling
The FALCON full-size funnel streamlines the refilling of intermediate bulk container (IBC) totes. The funnel is made of chemical-resistant polyethylene (PE) that is suitable for a variety of applications. It fits on top of standard IBC totes, covering the entire top surface of typical 330-gal IBCs. Its domed base allows liquid to run off through the large drain opening. The funnel is available with an optional lid and coarse strainer.
DENIOS
Oilless Air Compressors Deliver High Performance
The i.Comp 8 and 9 compressors are oilless air compressors that deliver air up to 160 psi and 20 ft3/min. By using a direct drive motor that does not require pump oil, these models reduce maintenance and waste disposal time. The oilless design also makes these pumps suitable for food manufacturing applications. The enclosure design allows for multiple pumps to be used side-by-side as needed. The pump units have a compact footprint that is less than 1 m2.
Kaeser Compressors
Venturi Inducer System Improves Energy Efficiency
The AirTrim Venturi inducer system fine-tunes airflow for pneumatic handling and trim removal of continuous waste in recycling and material recovery facilities. The system can convey a continuous flow of material (e.g., paper, plastic) to a container, collection bin, compactor, or baler for removal or recycling. The system can fine-tune airflow for an application and reduce the number of blowers required, helping to improve energy efficiency. In addition, the system reduces dust and maintenance costs by eliminating material contact. The system is available in a standard size with diameters from 3 in. to 8 in. and a jumbo size with diameters from 10 in. to 18 in.
AirTrim, Inc.
Instrumentation

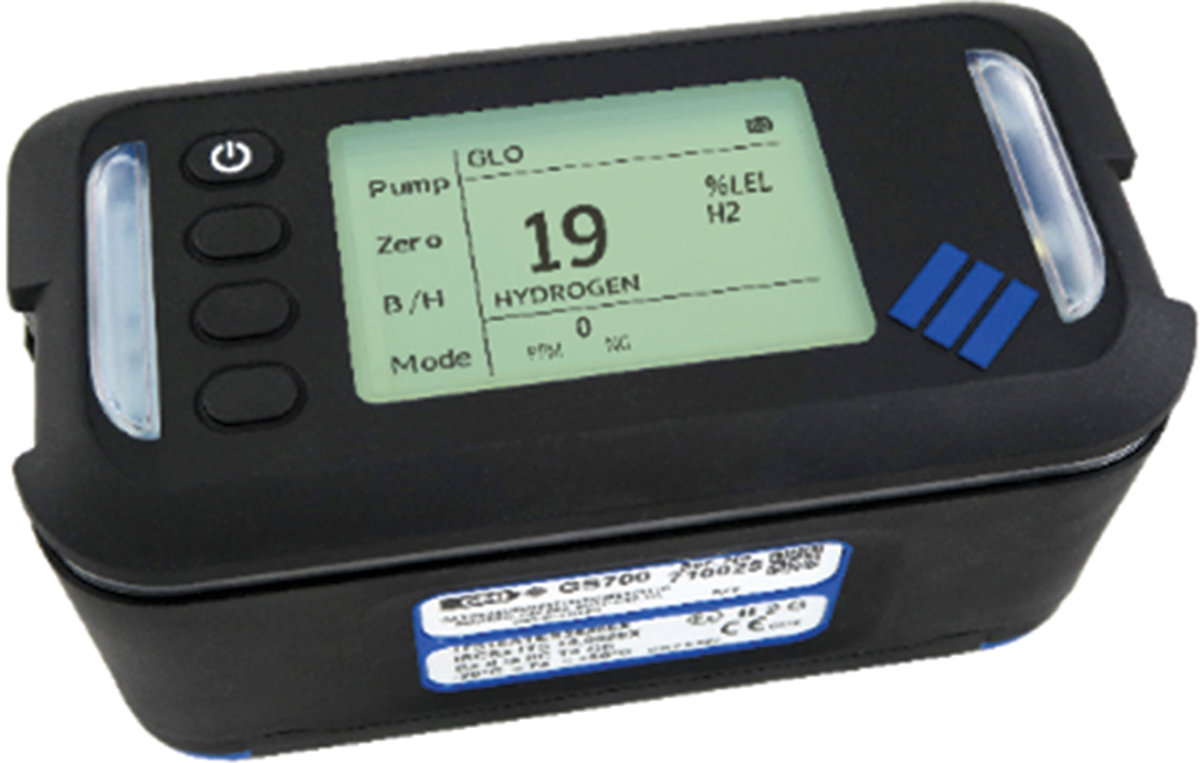

Portable Gas Detector Adds Hydrogen Detection
The GS700-Hydrogen portable infrared gas leak detector offers hydrogen (H2) and natural gas detection. It can detect pure H2 or hydrogen blends. The detector can be equipped with optional sensors, including oxygen (O2), carbon monoxide (CO), and hydrogen sulfide (H2S). It is compact and lightweight, weighing 1.4 kg. The gas detector is suitable for applications such as indoor and outdoor leak detection, purging, and pipeline gas testing.
Teledyne Gas and Flame Detection

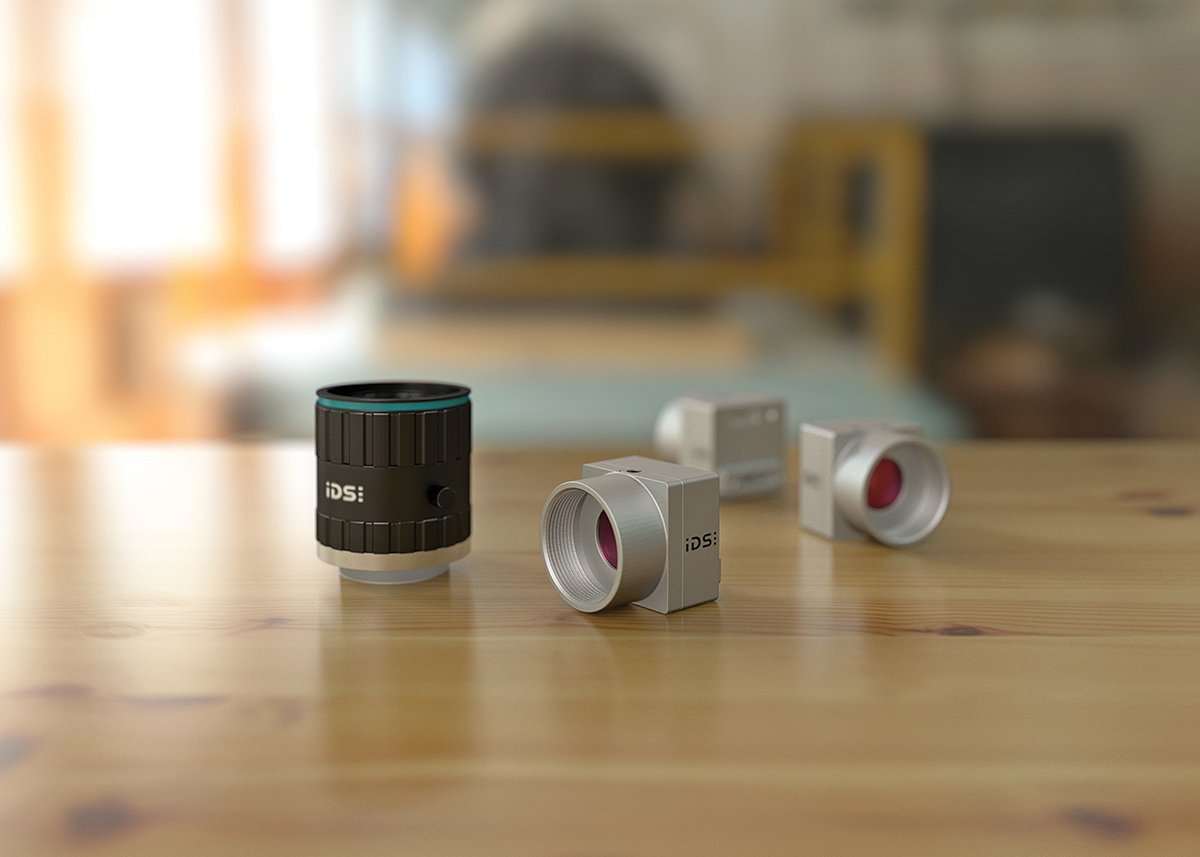

High-Resolution Camera Captures Fine Details
The onsemi AR2020 is a 20 MP rolling shutter sensor. It can capture images in 5K ultra-high-definition resolution, making small details visible. The sensor has a compact design with a closed housing (29 mm × 29 mm × 17 mm). It is available in color and monochrome, which is suitable for low-light applications and microscopy. It has a frame rate of 15 fps, but can also provide live videos at 27 fps in full high definition. The rolling shutter sensor is useful for quality control, surface inspection, and laboratory applications.
IDS Imaging Development Systems GmbH
Vibration Limit Switches Offer Reliable Level Measurement
The Vibracon LVL-M3 and -M4 vibration limit switches can detect liquid levels in tanks or protect pumps from running dry. They operate using a piezoelectric element that sets the sensor fork into vibration. When a liquid comes into contact with the fork, it changes frequency, allowing for level detection. The switches can distinguish between foam, air bubbles, and deposits while remaining unaffected by changing media properties. With no moving parts, these switches offer a long service life. The LVL-M3 model is suitable for standard applications with a wide temperature range (–40°C to 150°C) and pressures up to 40 bar, while the LVL-M4 variant can be used in safety applications with a temperature range of –50°C to 150°C and pressures up to 100 bar.
Pepperl+Fuchs

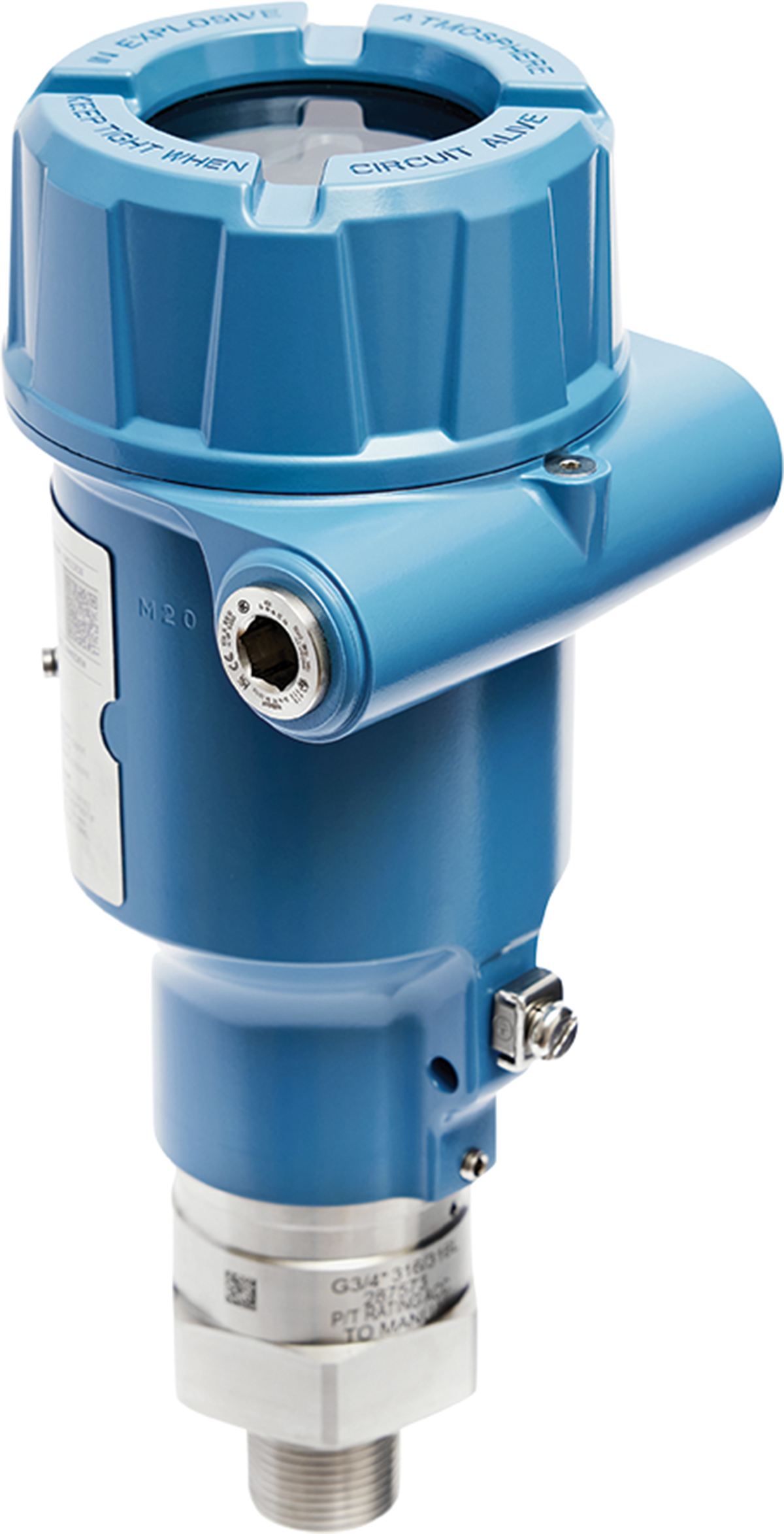

Radar Level Transmitter Incorporates Bluetooth Capabilities
The Rosemount 3408 level transmitter is a non-contacting level measurement device for monitoring liquid levels in chemical storage, mixing tanks, and open-air applications. To simplify installation and use, the transmitter incorporates an intuitive interface, Bluetooth remote monitoring capabilities, predictive alerts, and a configurable design. The device uses frequency-modulated continuous wave (FMCW) technology to provide accurate measurements. The transmitter protects against overfill and is safety integrity level (SIL) 2-certified.
Emerson
Portable Variable Frequency Drive Accommodates Temporary Applications
The ElectricPAK variable frequency drive (VFD) is suitable for mobile dewatering applications. It can be used with various pumping systems or as a standalone unit for maximum versatility. The integrated touchscreen interface and associated mobile app make operation more intuitive and give operators greater control over the pumping system. The VFD comes in a durable body designed to withstand challenging environments and safe transportation between jobs. The VFD is available in sizes from 50 hp to 350 hp.
Franklin Electric Co.
Corrosion Monitor Detects the Presence of Corrosive Gases
The AirImage-COR monitors for the presence of corrosive gases in real time using electrical resistance (ER) sensors. These monitors can handle conditions with high variability in gas concentration, like applications in oil and gas, paper manufacturing, and wastewater treatment. By monitoring and alerting personnel to the presence of corrosive gases, the corrosion monitor reduces downtime and maintenance costs. The monitor meets the requirements for corrosivity classifications (G1, G2, G3, GX) per the International Society of Automation (ISA) Standard 71.04-2013.
Camfil

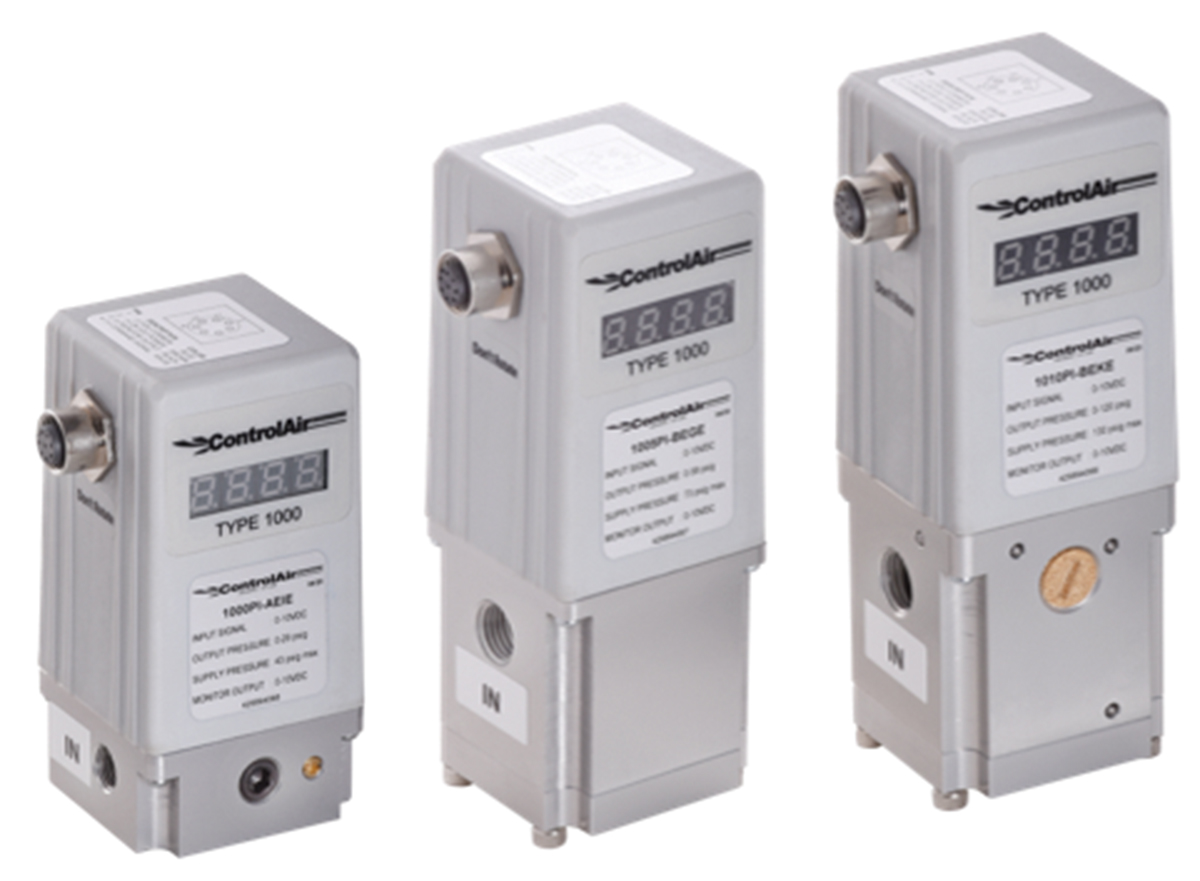

Electro-Pneumatic Pressure Regulators Are Suitable for Automation Applications
The Type 1000P electro-pneumatic pressure regulator series precisely regulates pressure in automated machinery, robotic arms, and assembly line equipment. The series consists of the 1000P, 1005P, and 1010P models, and each model is a complete closed-loop servo system consisting of two solenoid valves, an internal pressure sensor, and electronic controls. Output pressure ranges are 0–30 psig, 0–60 psig, and 0–120 psig. The input signals are 0–10 V, 4–20 mA, or RS485 Modbus.
ControlAir

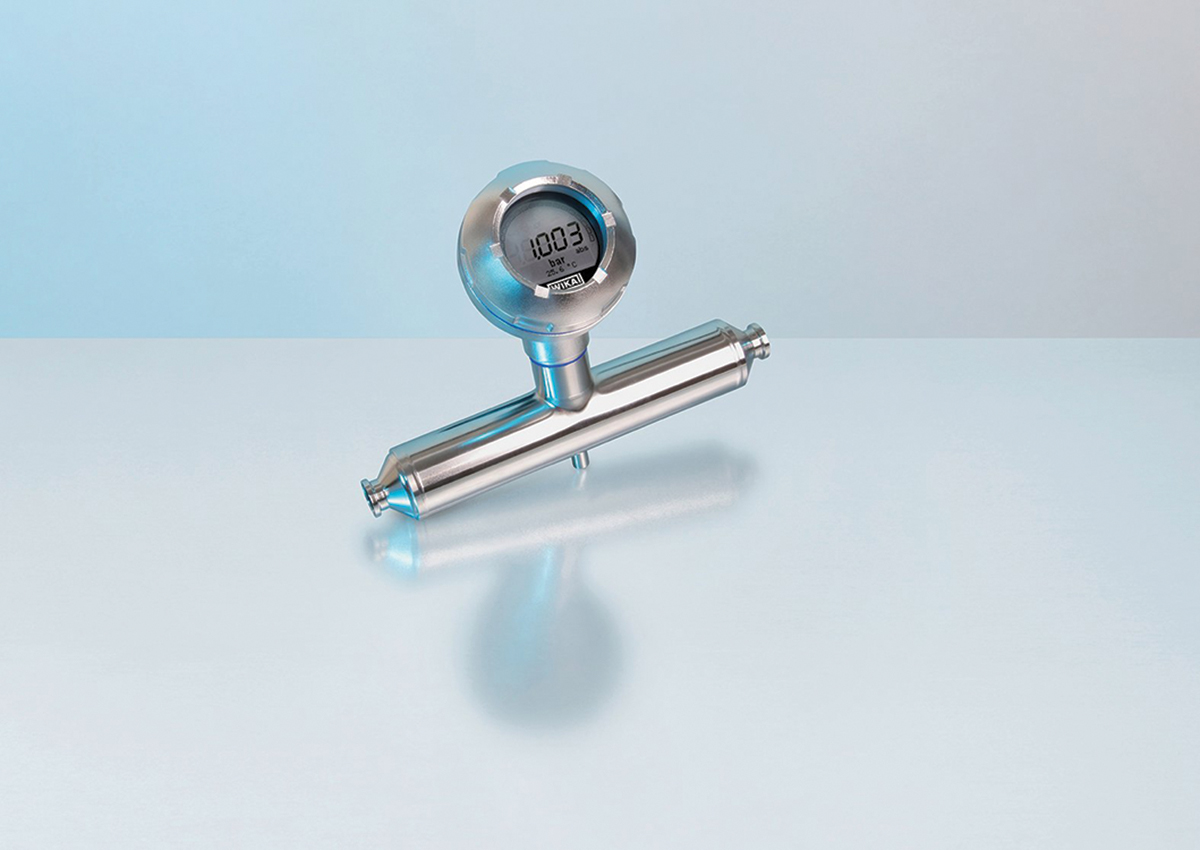

In-Line Transmitter Measures Pressure in Sterile Applications
The DMSU22SA pressure transmitter is an in-line unit for sterile pharmaceutical and food manufacturing processes. This transmitter provides continuous pressure measurements in gases, vapors, liquids, powders, and crystallizing media. Measurements are derived from the fluctuating deformations of the sensor tube, which produces a signal change, eliminating the need for a system fill fluid. The transmitter has a unique tube design that makes it more durable than comparable pressure measurement devices. The transmitter is certified by the European Hygienic Engineering and Design Group (EHEDG) and meets 3-A Sanitary Standards for sterile applications.
WIKA

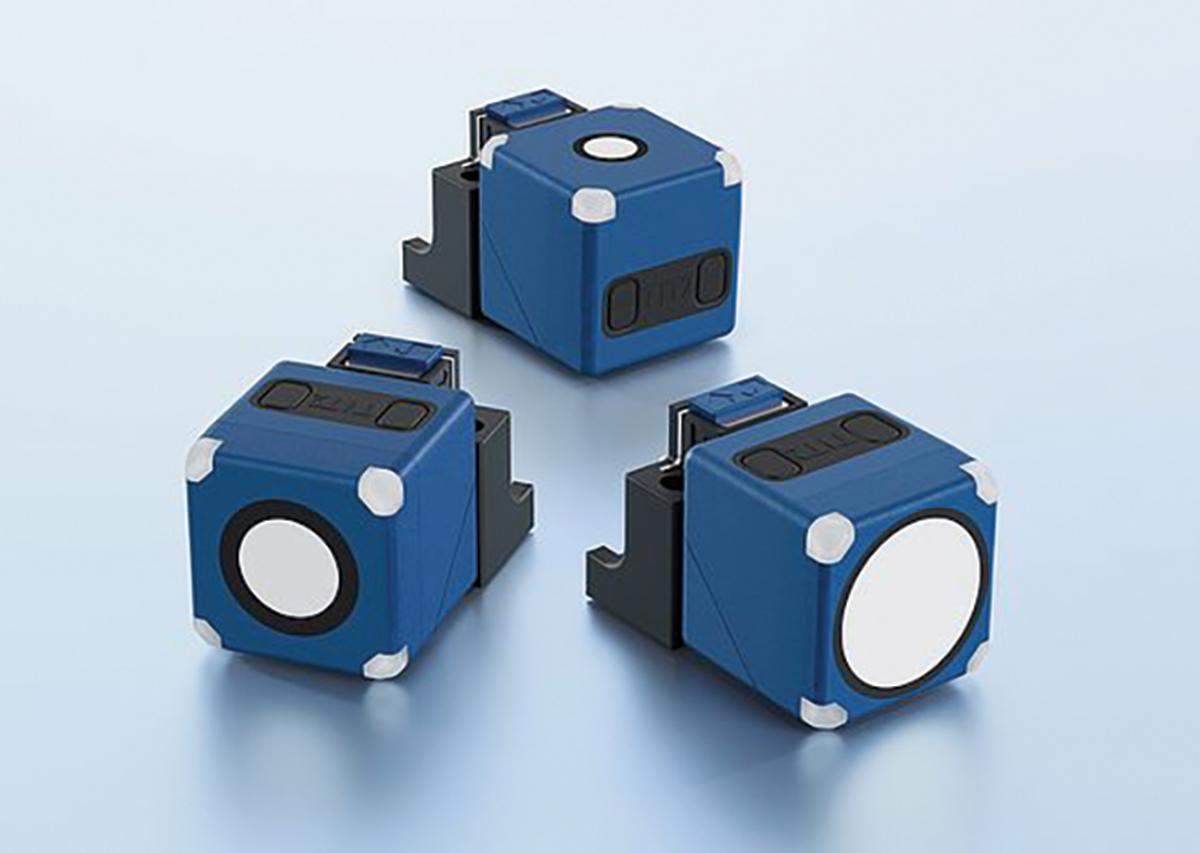

Ultrasonic Sensor Features Rotatable Sensor Head
The cube ultrasonic sensors have a rotatable sensor head that can be aligned in five directions. Each sensor is installed using its QuickLock mounting bracket, which facilitates easy mounting and replacement. It offers a variety of output methods (e.g., IO-link capabilities) and has an integrated LED that allows measurements to be monitored visually. The sensors can measure and report distances from 65 mm to 5 m.
Microsonic GmbH
Materials and Chemicals
Two-Part Epoxy Is Suitable for Sealing Applications
The EP21LVFL is an electrically insulative two-component epoxy. It is curable at room temperature and has a long working life of 120–160 min at 75°F for a 100-g batch. It is useful for bonding substrates with different expansion coefficients, such as metals, composites, glass, ceramics, rubbers, and plastics. It is also suitable for sealing and potting applications. It has a high elongation of 120–150%, a low tensile modulus of 1,500–2,500 psi, and a shore D hardness of 40–50. Optimal performance properties can be achieved by curing overnight at room temperature followed by four to six hours at 125–150°F. The product is available in a variety of packing options, as well as in premixed and frozen syringes and dual cartridges for gun dispensers.
Master Bond
Disintegrant Promotes Powder Flow in Pharmaceutical Manufacturing
Polyplasdone Plus is a direct compression superdisintegrant that improves pharmaceutical process throughput. The formulation includes a glidant and lubricant to further increase powder flow. Disintegrants promote the break-up of powder to increase surface area, which increases pill hardness and product consistency. The disintegrant can increase the powder flow by 29% and the feed factor by 9%.
Ashland
Environmentally Friendly Desiccant Provides Effective Moisture Control in Packages
The Desi Pak ECO is a plastic-free desiccant that adsorbs moisture in packaged goods. The desiccant uses nontoxic, water-based inks and adhesives to reduce its environmental impact and contains naturally occurring bentonite clay that is responsibly mined. The desiccant is highly adsorbent and comes in packets ranging from 1 g to 33 g. To further reduce the desiccant’s environmental impact, all packets are shipped in recyclable packaging with cobalt-dichloride-free (CDF) humidity indicator cards.
Clariant
Resin Includes Post-Consumer Recycled Materials
The NORYL resin is a polyphenylene ether (PPE)-based plastic that includes 25% or more post-consumer recycled (PCR) materials, making it a more sustainable option than comparable alternatives. This resin can be incorporated into existing resin blends based on the customer’s requirements. The resin comes in both fiber-reinforced and unreinforced versions. The manufacturer also works with customers to produce a resin that meets an application’s physical requirements.
SABIC
Operations and Maintenance
Foldable Crane Model Offers Versatile Lifting Options
The TMF-1000 is a truck-mounted foldable (TMF) crane. It maintains the desirable folding design and heavy-duty construction of its predecessor but is designed for shorter reaches and lighter capacity. The crane can be mounted on a truck bed or trailer for field service work, maintenance, loading/unloading applications, assembly operations, or positioning tasks. The crane has a manual extension boom that reaches from 43 in. to 70 in. horizontally with a lift height of up to 8.5 ft. It can lift 1,000 lb when retracted and 500 lb when extended. When not in use, the boom folds down completely. Standard operation relies on a manual hydraulic hand pump, but various power options are also available.
Air Technical Industries

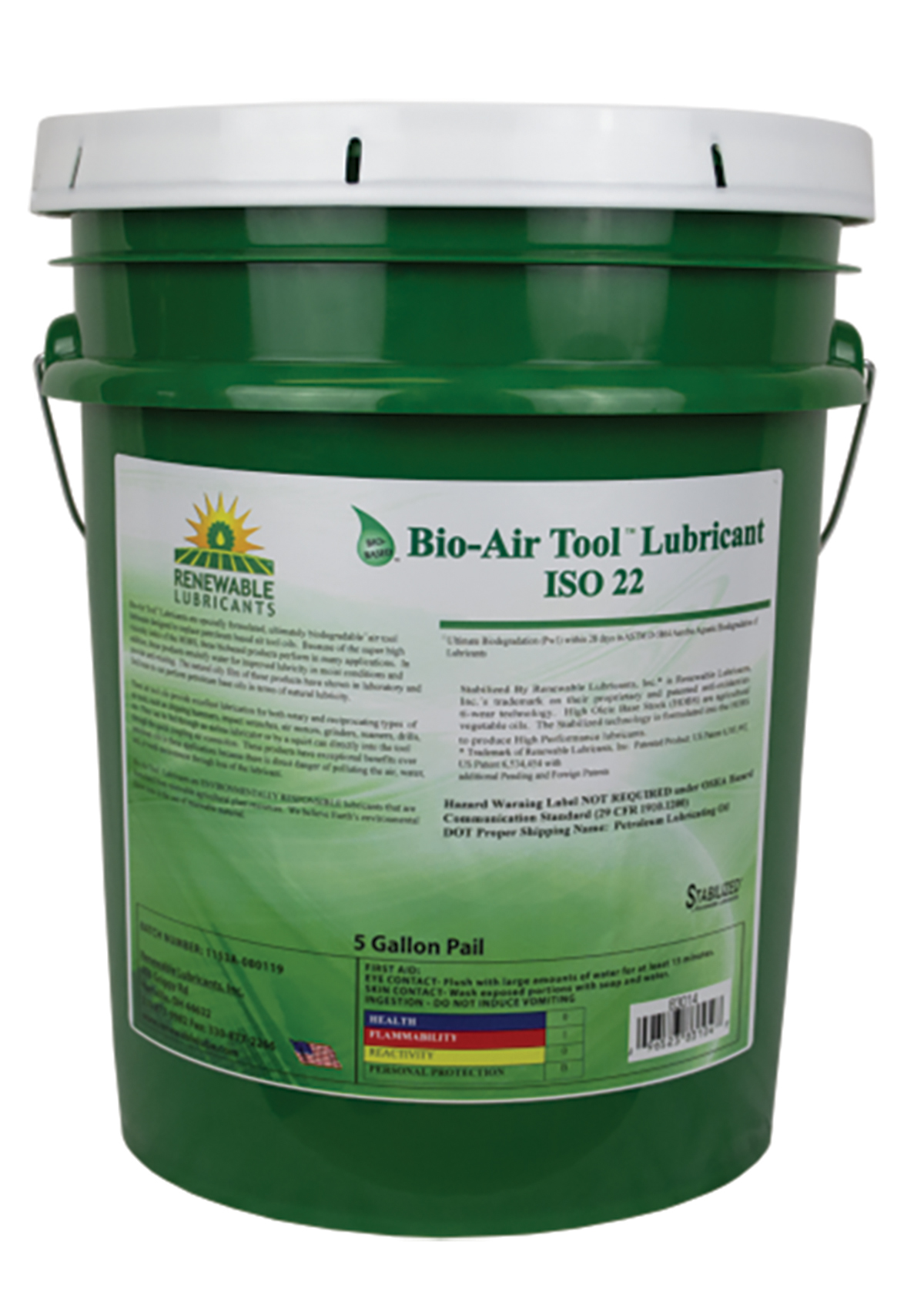

Tool Lubricants Are Safer for Employee Handling
Bio-Air Tool Lubricants are environmentally friendly and safer for employees than petroleum-based oils. These lubricants have better natural lubricity than their counterparts, emulsify water for improved corrosion protection in moist conditions, and can be fed through an airline lubricator or directly into tools. They are available in 22 and 32 weights and are suitable for rotary and reciprocating tools. They meet the U.S. Environmental Protection Agency’s (EPA) guidelines for environmentally acceptable lubricants (EALs). The use of Bio-Air Tool Lubricants eliminates reportable incidents, cleanup costs, and potential pollution from spilled lubricant.
Renewable Lubricant
Single-Leg, Semi-Gantry Crane Facilitates Load Transfers
The single-leg, semi-gantry crane streamlines the moving, loading, and unloading of heavy objects in a workspace. The crane design eliminates the need for floor railings, reducing installation costs and workspace clutter. The integrated EG series hoist simplifies adjustments and increases enclosure space. Monorail and double-girder models are available. These cranes have capacities up to 10 m.t. and lift ranges up to 65 ft.
Engineered Material Handling
