(162j) Formulation and Characterization of Gelatin-Based Hydrogels for Encapsulation of Kluyveromyces Lactis: Applications in Packed-Bed Reactors and Probiotics Delivery


Patarroyo Argüello, J. L. - Presenter, Universidad de los Andes
Cruz, J. C., Universidad de los Andes
Reyes, L. H., Universidad de los Andes
Over the past few years, the consumption of functional foods has gained significant attention from the general public as it has been advertised that a number of health benefits can be achievable in the long run [1]. This has been attributed to the incorporation of bioactive agents with proven activity towards mitigating impaired cellular functions that have been associated with some conditions including cancer, diabetes, cardiovascular disease (CVD), and hypertension. These bioactive components include omega-3 fatty acids, minerals, vitamins, proteins, peptides, probiotics, fiber, and prebiotics [2]. Of particular interest are probiotics, mainly due to their antimutagenic and anticarcinogenic, anti-infection, immunomodulatory and cholesterol reduction properties [2],[3]. One of the major challenges of preparing functional foods is to assure that the active components maintain their structural stability during storage and as they are consumed [4]. This is mainly due to their pass through the gastrointestinal (GI) tract where the environment constantly changes pH, and several enzymes act upon the compounds. As a result, a number of strategies have been developed to overcome this issue, which includes emulsions, microencapsulation, nanoencapsulation and encapsulation in polymeric matrices [2], [5]. In this regard, the encapsulation of probiotics such as yeast cells has included a number of polymers such as agar, carrageenan, alginate, and polyacrylamide [6]. Moreover, by controlling the parameters of encapsulation it is possible to maintain relatively high cell viability and stability while they are cultured or during storage periods [7]. Despite much success over the past few years, issues regarding material integrity as it passes through the GI tract are yet to be solved. This is problematic because a lower amount of the probiotic reaches the site of action [4]. For this reason, considerable effort is still needed to assure that the oral delivery of probiotics reaches a higher commercial success.

Accordingly, the main objective of the present study was to develop a cross-linked polymeric matrix from commercially available gelatin type A, to encapsulate the lactic acid-producing yeast K. lactis. The thermal, rheological, and mechanical properties, as well as the microscopic features of the prepared matrices, were evaluated before encapsulating cells. Upon encapsulation, a proof-of-concept experiment was performed on a bioreactor and simulated gastrointestinal medium (for saliva, stomach and intestine), where yields, cell viability, and biocompatibility were determined. The bioreactor experiments were conducted on a milliliter-scale, external-loop, airlift system.

The gels were prepared by mixing 3.0, 5.0 and 7.5% (w/v) gelatin with 1.0%, 3.0% and 5.0% (w/w) of the chemical crosslinker glutaraldehyde. The crosslinking reaction was conducted under mechanical agitation between 100 and 200 RPM, and at a temperature of 40 °C for 4 hours. A two-factor experimental design was performed here with 3 levels (32), where the factors were the concentration of glutaraldehyde and the concentration of gelatin in the gel, including samples without the addition of crosslinker. Near (NIR) and far-infrared (IR) spectroscopy were used to identify the functional groups present in the hydrogels. In this case, we tracked NH2, NH, CH2, CH3, H2O, CN, and amide groups in bands in the range of 800 to 2,500 nm (NIR), and 800 to 2,000 nm for the infrared (IR).

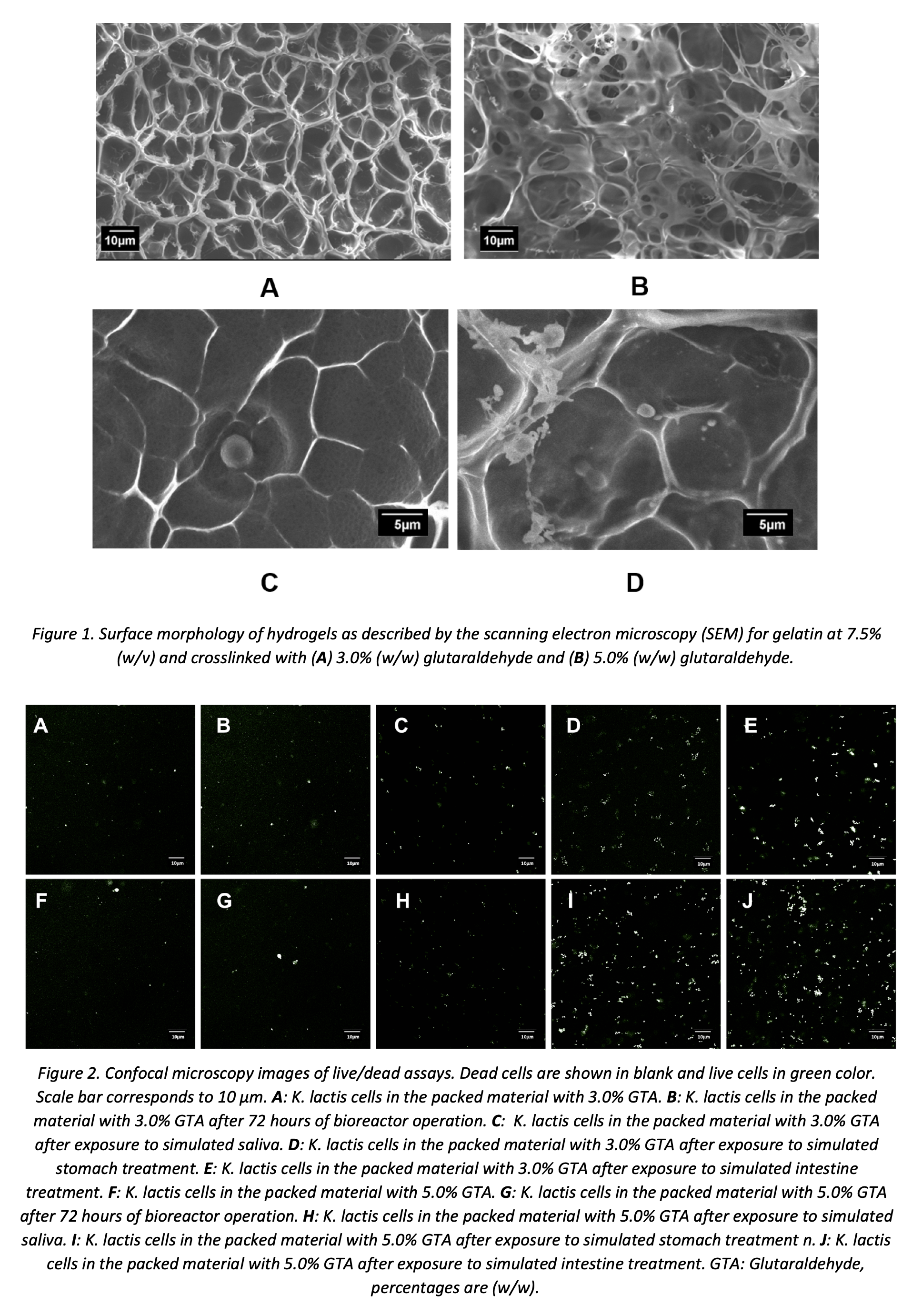

SEM micrographs allowed us to estimate the average pore size, which is a critical parameter to determine the viability of yeast cells encapsulated. The analyses confirmed that an increase in the concentration of glutaraldehyde leads to a decrease in the average pore size of the gel. Gels to continue with cell encapsulation were those with average pore size values in the range between 3 and 8 μm as is presented in Figure 1 (A and B). The same materials were imaged by SEM for direct observation of cells fixed on the hydrogel surface. Moreover, Figure 1 (C and D) shows that the pores are likely to act as microchambers to house the cells that, thereby reserving an essential space for survival and even proliferation during incubation.

Thermogravimetric analyses were conducted in the range from room temperature to 800 ºC to estimate the thermal stability of the gels. After an initial weight loss at about 100 °C (due to water), the gelatin network decomposed after 270 °C. Our results suggest a slight increase in thermal resistance for hydrogels with higher crosslinking levels.

Hydrogels were subjected to swelling in an aqueous medium at pH 7.0. Higher swelling was achieved for gels with lower crosslinking degrees. Additionally, superior structural stability in such medium (about six days) was observed for gels with a 7.5% (w/v) collagen content.

Bloom tests on the gels indicated that an increase in the crosslinking agent concentration led to more stable and elastic materials, however; such an increase in stiffness promoted an increase in the tendency to fracture when subjected to plastic deformation. After milli-bioreactor operation, the original firmness was halved for both cross-linker concentrations. In contrast, after the simulated saliva treatment, the firmness increased most likely due to the incorporation of salts from the medium. Similarly, the simulated stomach medium led to increased firmness most likely due to protonation of superficial groups by the low pH. Finally, the small intestine simulated medium is again pH neutral and therefore promotes the dissociation of the material. The behavior of the material in the whole GI tract is favorable since it manages to overcome the stomach without major structural damage, and becomes penetrable as it reaches the small intestine where the probiotic cells are finally released.

Yeast probiotics cells were grown in a Yeast Nitrogen Base (YNB) supplemented with glucose and lactose culture medium. Encapsulation of K. lactis proceeded in gelatin hydrogels with 7.5% (w/v) collagen contents at 3% and 5% (w/w) glutaraldehyde. Cell viability was evaluated by direct live/dead staining and observation and counting under a confocal microscope. Figure 2 indicated high viability after encapsulation and even after milli-bioreactor operation. When the hydrogels are subjected to the different GI treatments (i.e., saliva, stomach, and small intestine); however, cell viability progressively decreases as it moves along the GI tract. Nevertheless, only 50% of probiotic cells of the encapsulated cells lost their viability.

The approach presented here provides a suitable route for the preparation of chemically-crosslinked gelatin hydrogels with applications in probiotics encapsulation. The obtained encapsulates showed high cell viability in a mili-bioreactor operation and various media corresponding to GI tract compartments.
