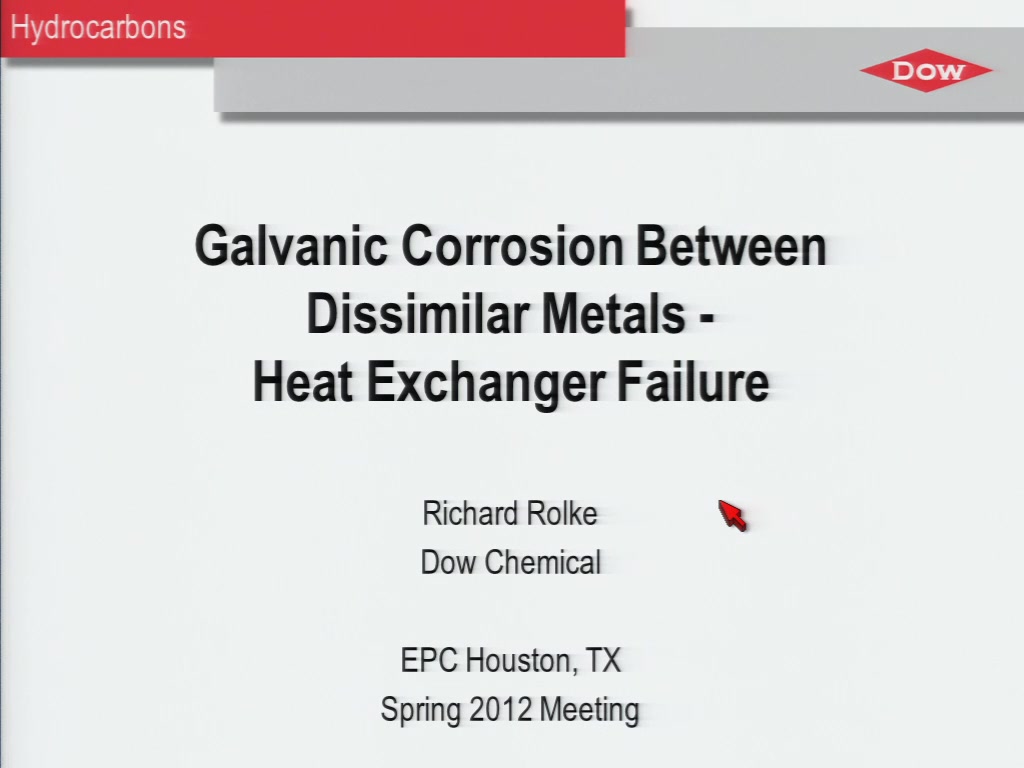

Galvanic Corrosion Between Dissimilar Metals

Developed by: AIChE
  • Type:
    Conference Presentation
  • Conference Type:
    AIChE Spring Meeting and Global Congress on Process Safety
  • Presentation Date:
    April 5, 2012
  • Skill Level:
    Intermediate
  • PDHs:
    0.50

Share This Post:

You will be able to download and print a certificate for PDH credits once the content has been viewed. If you have already viewed this content, please click here to login.

A Dow USGC cracker suffered a tube failure on a cracked gas compressor inner stage cooler after ten plus years of service. To further extend the equipment life, the decision was made to replace the tube bundle and upgrade the metallurgy of the tubes from admiralty brass to Duplex stainless steel. The new tube bundle was placed in service, but failed after only eight months of operation. The premature failure was found to be caused by deep pitting in the carbon steel tubesheet. The dissimilar metals of the Duplex tubes and carbon steel tubesheet, with river water acting as the electrolyte, formed a galvanic cell which preferentially corroded the carbon steel tubesheet. This paper will describe the details of the failure and failure mechanism.
Presenter(s):
